Ball Screw Assembly

Ball Screw Assembly

Screw-Nut

  1. High Precision:Supports multiple precision grades, including C3, C5, C7, and C10.

  2. Multiple Structures:Supports deflector type, return-tube type, end-deflector type, and end-cap ball return structures.

  3. Compact Design:Provides various single-nut structures, including flanged, cylindrical, metric-threaded, and square single nuts.

  4. Flexible Customization:Supports customization of screw diameter, lead, thread direction, total length, precision grade, and axial clearance. The FBG/FBR series part number coding includes these customization parameters.

Online ConsultationOnline Consultation
Product Parameters

Technical DataTechnical Data

Technical dateFBG/FBR 2型FBG/FBR 1型CBG/CBRMBG/MBRKBG/KBR
Product TypeFlanged Single Nut - Type 2Flanged Single Nut - Type 1Cylindrical Single NutMetric Thread Single NutSquare Single Nut
ManufacturingGround / RolledGround / RolledGround / RolledGround / RolledGround / Rolled
Screw Diameter4–12 mm*6–12 mm4–6 mm4–10 mm6–8 mm
LeadMultiple OptionsMultiple Options1 mm*1–2 mm*1–2 mm*
Ball Return TypeDeflector / End Deflector / Return Tube / End CapDeflector / End Deflector / Return Tube / End CapDeflector / End Deflector / Return Tube / End CapDeflector / End Deflector / Return Tube / End CapDeflector / End Deflector / Return Tube / End Cap
Thread DirectionRight / Left / Right & LeftRight / Left / Right & LeftRight / Left / Right & LeftRight / Left / Right & LeftRight / Left / Right & Left
Accuracy GradeC3 / C5 / C7 / C10C3 / C5 / C7 / C10C3 / C5 / C7 / C10C3 / C5 / C7 / C10C3 / C5 / C7 / C10
Axial ClearancePreload / ≤0.005 / ≤0.02 / ≤0.05 mmPreload / ≤0.005 / ≤0.02 / ≤0.05 mmPreload / ≤0.005 / ≤0.02 / ≤0.05 mmPreload / ≤0.005 / ≤0.02 / ≤0.05 mmPreload / ≤0.005 / ≤0.02 / ≤0.05 mm
Nut ConfigurationFlangedFlangedCylindricalMetric ThreadedSquare
CustomizationAvailableAvailableAvailableAvailableAvailable

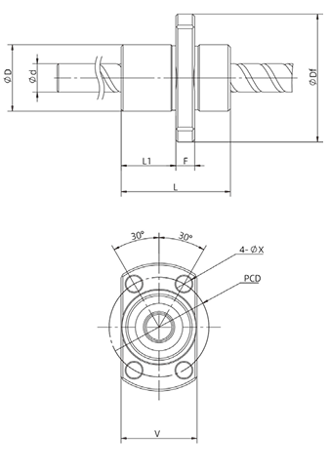

Overall DimensionsOverall Dimensions

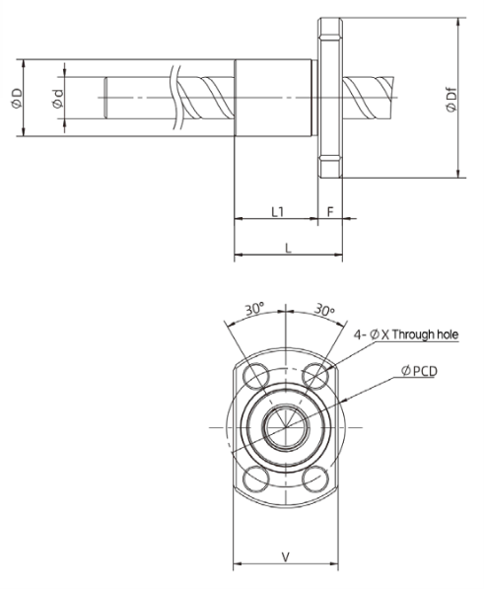

Product DrawingProduct Drawing
