Inverted Planetary Roller Screw Nut

Inverted Planetary Roller Screw Nut

Screw-Nut

  1. ISO 3408-3 precision grades 3, 5, and 7

  2. High-speed operation

  3. Short stroke

  4. Medium load capacity

  5. Highly customizable

  6. Direct load application to the push rod

  7. Integrated electromechanical actuator design

Product Parameters

Technical DataTechnical Data

Central screw dia. (mm)

10.5

10.5

10.5

12

12

13.5

15

18

18

21

21

24

24

Lead (mm)

2

3

3.5

2

3

2

2

2

3

2

3

2

3

D0(mm)

17

17

17

20

20

-

-

-

-

-

-

-

-

Number of thread starts

3

3

3

3

3

3

3

3

3

3

3

3

3

Screw (mm)

Helix angle

3.47

5.2

6.06

3.04

4.55

2.7

2.43

2.03

3.04

1.74

2.6

1.52

2.28

d1

10.75

10.875

10.75

12.25

12.38

13.75

15.25

18.25

18.375

21.25

21.375

24.25

24.375

d0

10.5

10.5

10.5

12

12

13.4

15

18

18

21

21

24

24

d2

10.26

10.15

10.1

11.765

11.65

13.264

14.764

17.764

17.646

20.764

20.646

23.764

23.646

Nut (mm)

D1min

24

24

24

26

26

30

32

38

38

45

45

50

50

L1max

140

140

140

160

160

180

200

240

240

280

280

280

280

Dynamic load Ca

KN

10.72

11.44

12.11

13.2

14.16

14.32

22.16

28.96

31.28

43.6

47.68

59.04

65.12

Static load C0a

KN

16.64

12.8

10.02

21.68

18.79

23.12

44.16

61.76

59.92

84.8

83.84

128.8

129.2

Stiffness coefficient Fk

N2/3/μm

26.08

18

11.53

29.2

20.78

29.76

40.8

47.2

37.52

54

43.36

64.96

52.8

Axial clearance

mm

0.03

0.04

0.04

0.03

0.04

0.03

0.03

0.03

0.04

0.03

0.04

0.03

0.04

Forward efficiency

%

83

85

87

82

84

81

80

78

82

76

80

74

79

Reverse efficiency

%

81

83

84

79

81

78

76

73

79

71

77

67

75


Overall DimensionsOverall Dimensions

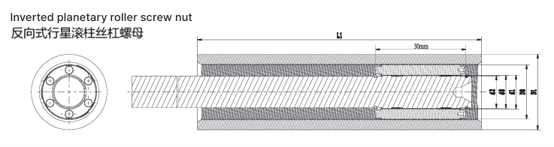

Product DrawingProduct Drawing
