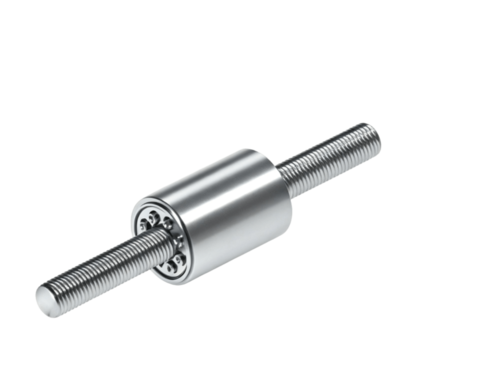

Name: Standard Planetary Roller Screw Nut
Rating: 4.5 (100 reviews)

Technical Data

Central screw dia. (mm)		8	8	9	10	10	12	12	15	15	18	18	20	20
Lead (mm)		3	4	4.5	3	4	3	4	3	4	3	4	3	4
Number of thread starts		4	4	4	5	5	5	5	5	5	5	5	5	5
Screw (mm)	Helix angle	6.81	9.04	9.04	5.2	6.91	4.55	6.06	3.64	4.85	3.04	4.05	2.8	3.74
	d1	8.28	8.38	9.3	10.73	10.8	12.23	12.3	15.23	15.3	18.23	18.3	19.73	19.8
	d2	8	8	9	10.5	10.5	12	12	15	15	18	18	19.5	19.5
	d3	7.74	7.65	8.54	10.29	10.22	11.79	11.72	14.79	14.72	17.79	17.72	19.29	19.22
Nut (mm)	D1	21	21	23	24	24	26	26	34	34	40	40	42	42
	D2	41	41	44	46	46	46	46	56	56	62	62	64	64
	D3	4.5	4.5	4.5	4.5	4.5	4.5	4.5	5.3	5.3	5.3	5.3	5.3	5.3
	D4	M5	5M	5M	M5	M5	M5	M5	M6	M6	M6	M6	M6	M6
	L1	31	31	36	36	36	36	36	45	45	51	51	53	53
	L2	31	31	37	31	31	31	31	40	40	48	48	55	56
	L3	13	13	13	13	13	13	13	18	18	18	18	20	20
Dynamic load Ca	KN	23	23	23	26	26	28	28	36	36	42	42	44	44
Static load C0a	KN	7.92	8.56	9.41	11.44	12.48	12.56	13.76	20.4	21.44	28	30	34.16	36.56
Stiffness coefficient Fk	N2/3/μm	14	14.4	15.44	19.28	20.08	20.88	21.76	40.4	39.6	60.88	61.04	80.48	80.64

Overall Dimensions

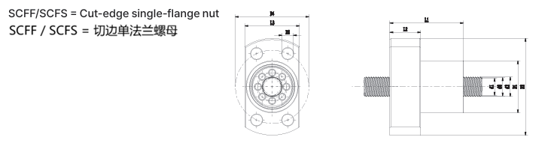

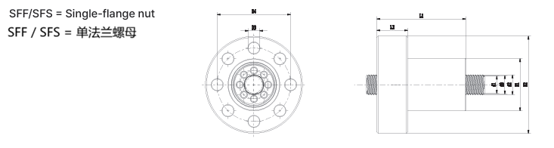

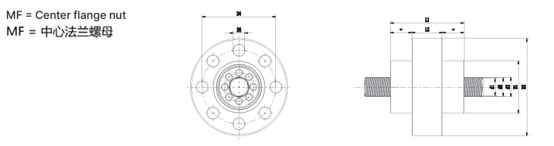

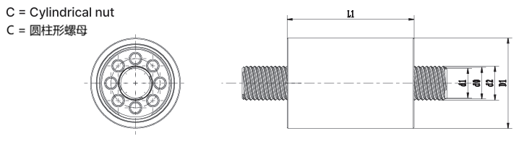

Product Drawing
