Name: HS52P2
Rating: 4.5 (100 reviews)

Technical Data

General &Basic information

Description	Value
Housing material	Metal
Type of teeth	Straight
Teeth material	Helical gears in 1st stage
Output shaft material	Plastic/Steel
Output end bearing	Ball Bearing
Radial clearance(6mm from flange)	≤0.06mm
Axial clearance	≤0.5mm
Max. radial load(6mm from flange)	≤300N
Max. dynamic axial load	≤150N
Max. allowable installation force	≤300N
Direction(from the driver to output)	Same
Operating temperature range	-40°C to +100°C

Technical Date

Description	Value
Number of gear stages	1	2	3	4
Reduction ratio	3.789 4.313 5.077 6.3	14.4/16.3 18.6/19.2 21.9/23.9 32.0/39.7	54.4/61.9 70.5/72.9 80.2/83.0 90.4/94.4 97.7/102.9 111.2/117.2 121.2/130.9 137.9/150.4 162.4/171.2 201.5/250.0	206/235/267/276/304 314/343/346/358/370 390/407/421/444/459 479/496/505/523/564 570/595/615/649/664 700/738/764/824/869 947/1023/1078 1269/1575
No-load gear backlash	1.2°	1.4°	1.6°	1.7°
Max. continuous input speed	6000rpm	6000rpm	6000rpm	6000rpm
Max. instantaneous input speed	8000rpm	8000rpm	8000rpm	8000rpm
Max. continuous torque	2000mNm	5000mNm	25000mNm	25000mNm
Max. instantaneous torque	3000mNm	7500mNm	37500mNm	37500mNm
Max. efficiency	85%	77%	69%	62%
Weight reference value of gearbox	465	622	779	936
L1[mm]=Length of gearbox	49.2	64.6	77	89.4

Motor pinion specification

Initial deceleration ratio	Material	Number of teeth	Thickness	Hole diameter and flat position
3.789	Steel	Z=19	10_±0.1
4.313		Z=16
5.077		Z=13
6.3		Z=10

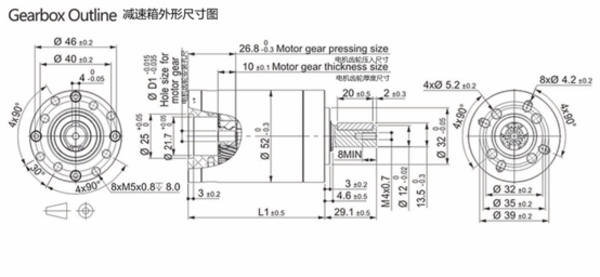

Overall Dimensions

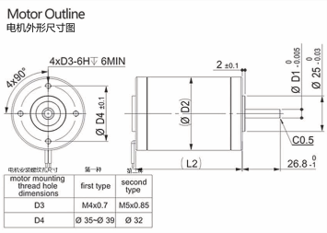

Product Drawing

After Service

To provide solid support for all after-sales services, ensuring service quality and efficiency:

1. National service outlets:Establishing service outlets and testing centers in major industrial cities in China to achieve regional service coverage and shorten on-site service response time;

2. Original factory engineering team:All service engineers have undergone professional training and assessment, possess the ability to debug, repair, and calibrate sensors/joint modules throughout the entire process, and are certified to work;

3. Standardized service process:Establish a standardized process from service acceptance, fault diagnosis, solution, service execution, and after-sales follow-up to ensure that every service is recorded, tracked, and guaranteed;

4. Service quality follow-up:After all services are completed, Follow up with customers within 72 hour, collect customer feedback, and continuously optimize service processes and quality.

Promise to quickly solve problems within 12 hours, 7x24Timely response within hours,36on-site maintenance within hours.
