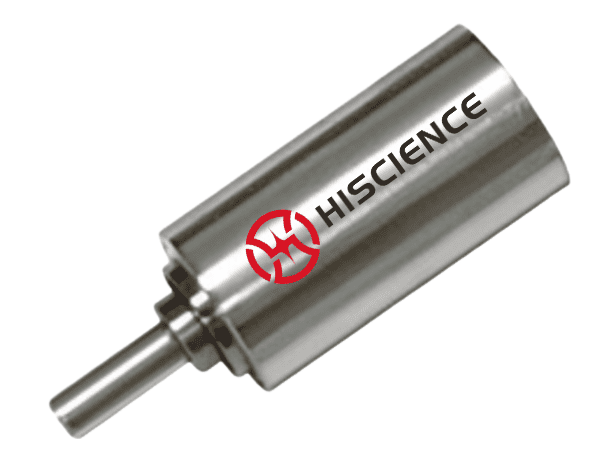

HS5.8P

HS5.8P

Planetary Gearbox

  1. Fast response speed

  2. High accuracy based on the resistance strain gauge principle

  3. Low long-term crosstalk error and excellent long-term stability

Product Parameters

Technical DataTechnical Data

General &Basic information

Description

Value

Housing material

Metal

Type of teeth

Straight

Teeth material

Steel

Output shaft material

Stainless Steel

Output end bearing

Ball Bearing

Radial clearance(6mm from flange)

≤0.08mm

Axial clearance

≤0.1mm

Max. radial load(6mm from flange)

≤5N

Max. dynamic axial load

≤3N

Max. allowable installation force

≤5N

Direction(from the driver to output)

Same

Operating temperature range

-15°C to +80°C

Technical Date

Description

Value

Number of gear stages

1

2

3

4

Reduction ratio

4

16

64

256

No-load gear backlash

4°

5°

5.5°

5.5°

Max. continuous input speed

25000rpm

30000rpm

35000rpm

35000rpm

Max. instantaneous input speed

30000rpm

35000rpm

40000rpm

40000rpm

Max.continuous torque

5mNm

10mNm

20mNm

20mNm

Max.instantaneous torque

7.5mNm

15mNm

30mNm

30mNm

Max. efficiency

80%

64%

51%

41%

Weight reference value of gearbox

1.5

1.7

1.9

2.2

L1[mm]=Length of gearbox

8.8

10.85

12.9

14.95

Motor pinion specification

Initial deceleration ratio

Material

Number of teeth

Thickness

Hole diameter and flat position

4

Steel

Z=12

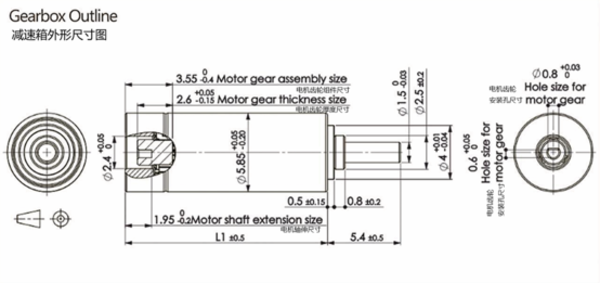

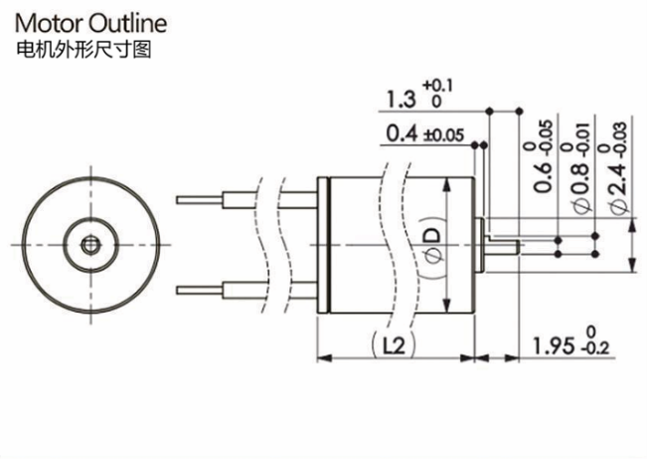

Overall DimensionsOverall Dimensions

Product DrawingProduct Drawing
