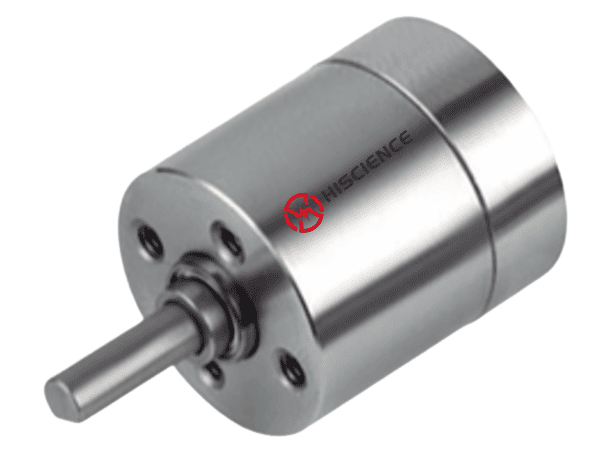

Name: HS16P2
Rating: 4.5 (100 reviews)

Technical Data

General &Basic information

Description	Value
Housing material	Metal
Type of teeth	Straight
Teeth material	Steel
Output shaft material	Stainless Steel
Output end bearing	Ball Bearing
Radial clearance(6mm from flange)	≤0.05mm
Axial clearance	≤0.1mm
Max. radial load(6mm from flange)	≤30N
Max. dynamic axial load	≤15N
Max. allowable installation force	≤25N
Direction(from the driver to output)	Same
Operating temperature range	-40°C to +100°C

Technical Date

Description	Value
Number of gear stages	1	2	3	4
Reduction ratio	3.789 4.313 5.077 6.3	14.4/16.3 18.6/19.2 21.9/23.9 32.0/39.7	54.4/61.9 70.5/72.9 80.2/83.0 90.4/94.4 97.7/102.9 111.2/117.2 121.2/130.9 137.9/150.4 162.4/171.2 201.5/250.0	206/235/267/276/304 314/343/346/358/370 390/407/421/444/459 479/496/505/523/564 570/595/615/649/664 700/738/764/824/869 947/1023/1078 1269/1575
No-load gear backlash	1.8°	2.2°	2.4°	2.5°
Max. continuous input speed	10000rpm	12000rpm	15000rpm	18000rpm
Max. instantaneous input speed	12000rpm	15000rpm	18000rpm	21000rpm
Max. continuous torque	200mNm	400mNm	800mNm	1000mNm
Max. instantaneous torque	300mNm	600mNm	1200mNm	1500mNm
Max. efficiency	90%	81%	73%	65%
Weight reference value of gearbox	16.4	20.6	22.7	29.3
L1[mm]=Length of gearbox	13.6	17.6	21.6	25.6

Motor pinion specification

Initial deceleration ratio	Material	Number of teeth	Thickness	Hole diameter and flat position
3.789	Steel	Z=19
4.313		Z=16
5.077		Z=13
6.3		Z=10

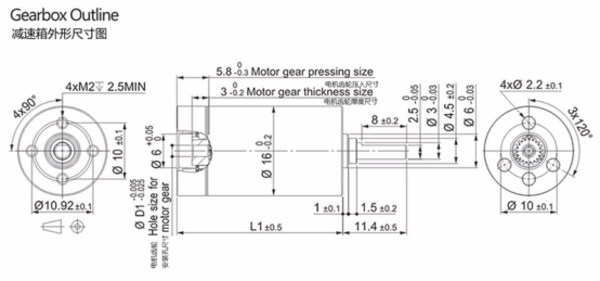

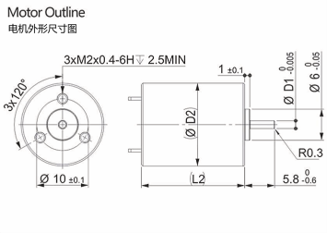

Overall Dimensions

Product Drawing
