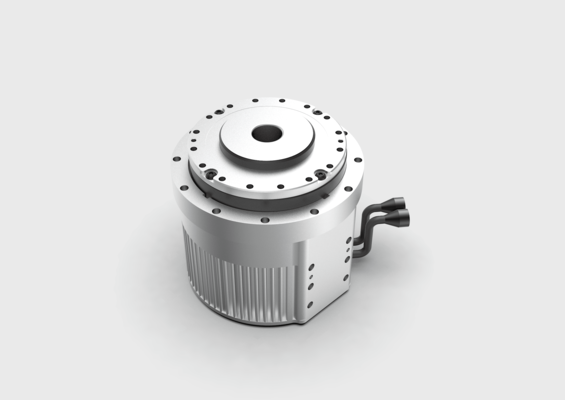

HS-HA14

HS-HA14

Joint Components

Adopting a dual magnetic encoder; High precision transmission performance; Super strong overload resistance.

Online ConsultationOnline Consultation
Product Parameters

Technical DataTechnical Data

ItemUnitHA14-TEHA14-BTE
Model-HS-HA14-006-TE-M-V02-01-01HS-HA14-006-BTE-M-V02-01-01
Type-LightweightWith Brake
Reduction Ratio-101101
Rated Torque @ Input Speed 2000r/minN.m5353
Max Allowable Torque for Average LoadN.m9.59.5
Max Allowable Torque for Start-StopN.m2424
Peak Output TorqueN.m2525
Max Continuous Operating Speedrpm29.729.7
Peak Output Speedrpm39.639.6
Rated PowerW4040
Rated VoltageV48V48V
Output Moment of InertiaKg·m20.0480.069
Allowable Overturning TorqueN.m2525
Repeat Positioning Accuracyarcsec≤10≤10
Transmission Accuracyarcsec≤60≤60
Torque Sensor-OptionalOptional
Encoder-Dual encoders, single-turn absolute, 17-bit resolutionDual encoders, single-turn absolute, 17-bit resolution
Driver Communication Protocol-EtherCAT / CAN FDEtherCAT / CAN FD
Operating Ambient Temperature°C-20℃ ~ 50℃-20℃ ~ 50℃
Protection Class-IP54IP54
Overall Dimension (Diameter × Height)mm52*5752*73
Hollow Shaft Diametermm8
8
Weightkg0.370.45

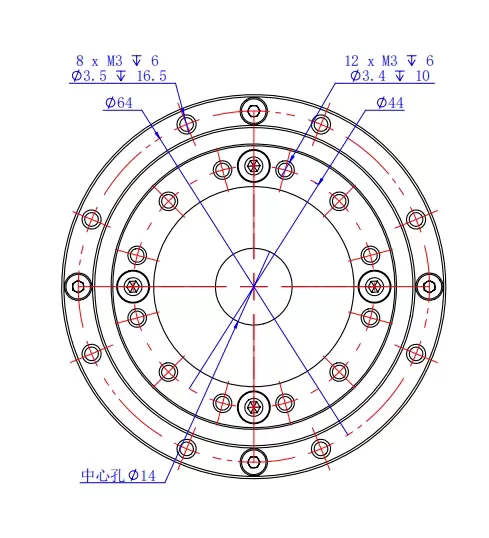

Overall DimensionsOverall Dimensions

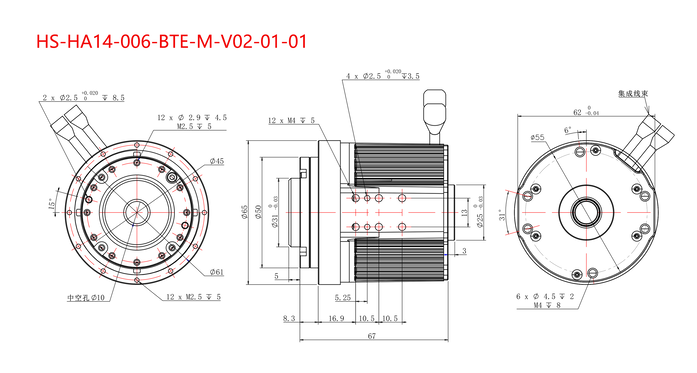

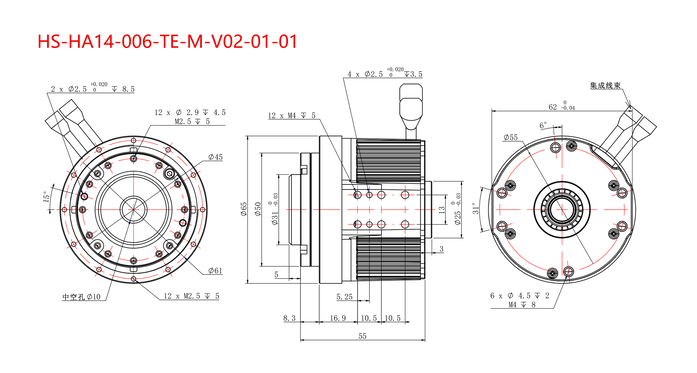

Product DrawingProduct Drawing
