Smart Sensing
Multi-Sensor Fusion
High-Precision Force Sensing
Real-Time Foot Posture Detection
Terrain & Ground Clearance Sensing
High-Speed Data Transmission

Joint Components
Smart Sensing
Multi-Sensor Fusion
High-Precision Force Sensing
Real-Time Foot Posture Detection
Terrain & Ground Clearance Sensing
High-Speed Data Transmission
Technical Data| Force Sensor Array | 5 Sensors |
| Force Measurement Range | 0–2000 N (Optional) |
| Overload Load | 2500 N |
| Burst Load | 3000 N |
| Force Accuracy | ±2% Full Scale, Full Temperature Range |
| Supply Voltage | 4.75–5.25 V |
| Output Signal | SENT / Analog 0.5–4.5 V (Optional) |
| IMU | Acceleration: ±16 g; Gyroscope: ±2000 °/s |
| Angular Accuracy | X, Y: 0.2°; Z: 1°* |
| Distance Sensing | 940 nm VCSEL |
| Detection Range | Up to 300 cm+ with Full FoV |
| Communication Interface | RS485 |
| Upload Frequency | 1 kHz |
| Data Transfer Rate | 1 Mbps |
| Connector | GH1.25, Customizable |

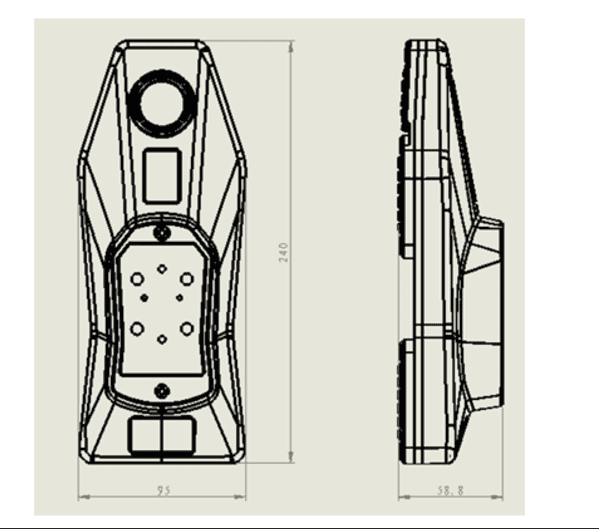

Overall Dimensions
Product Drawing
After ServiceTo provide solid support for all after-sales services, ensuring service quality and efficiency:
1. Nationalservice outlets:Establishing service outlets and testing centers in majorindustrial cities in China to achieve regional service coverae and shorter on-site service response time;
2. 0riginal factory engineering team:All service engineers have undergone professional training and assessment, posess the ability to debug,repair, and calibrate sensors/joint modules throughout the entire process, and are certified to work;
3. Standardized service process:Establish a standardized process from service acceptance,fault diagnosis,solution, service execution, and afer-sales follow-up to ensure that every service is recorded, tracked, and guaranteed;
4. Service quality follow-up:After alservices are completed, folow up with customer within 72 hour,collect customer feedback, and continuously optimize service processes and quality.
Promise to quickly solve problems within 12 hours, 7x24Timely response within hours,36on-site maintenance within hours.
