25 Series

25 Series

Frameless Torque Motor

1.Modular stator and rotor design with optimized magnetic circuit improves the motor’s torque density.

2.The rotor features a large internal hollow space, and the stator can be installed using the customer’s embedded mounting method, allowing flexible customized designs, including installation configurations, and providing greater adaptability for customer-specific systems.

3.Optimized slot-pole combination reduces cogging torque, ensuring smoother motor operation.

4.Compact structure with high integration capability.

Online ConsultationOnline Consultation

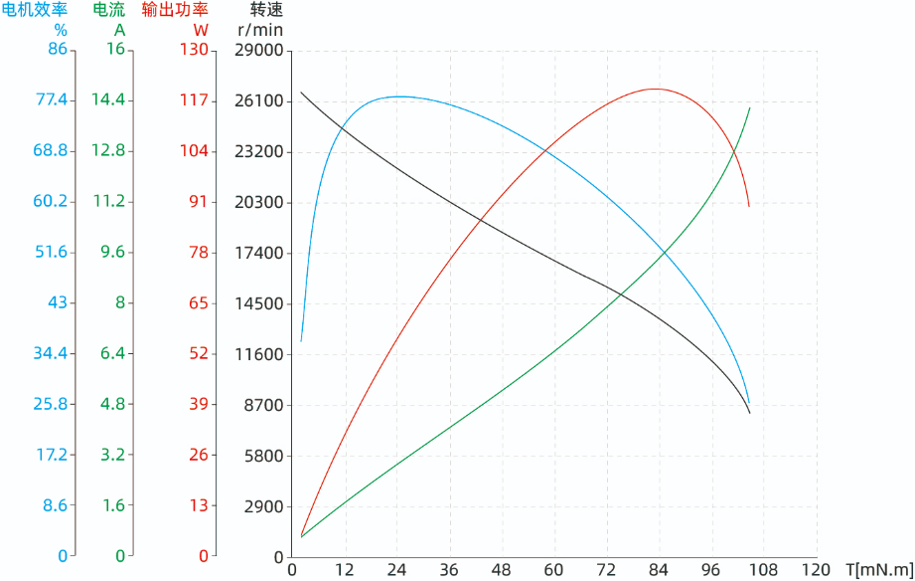

Product Parameters

Technical DataTechnical Data

Motor Model
25ZWC10X-1
Stator Outer Diametermm23(±0.016)
Rotor Inner Diametermm11.6(+0.018)
Number of Slots-12
Number of Pole Pairs-7
Line ResistanceW0.42
Line InductancemH0.123

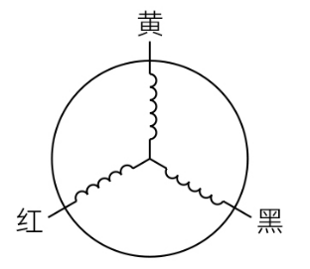

Winding Connection Method-Star Connection
Insulation Class-F
Duty Cycle-S2
Feedback Method-/
Commutation Angle-120°
Dielectric Strength (Withstand Voltage)-600VAC/1s/2mA
Insulation Resistance-50MW/500VDC
Stator Weightg22
Rotor Weightg3.2
No-load SpeedRPM26000
No-load CurrentA0.65(REF)
Rated VoltageVDC24
Rated PowerW70
Rated TorqueN·m0.032
Rated SpeedRPM22650
Rated CurrentA3.8
Torque ConstantNm/A0.009
Back EMF Constant - RMS ValueVrms/Krpm0.65
Peak TorqueN·m0.105
Peak CurrentA13
Rotor Inertiag·cm21.47


Overall DimensionsOverall Dimensions

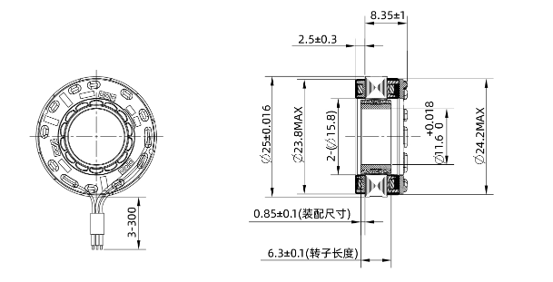

Product DrawingProduct Drawing
