38 Series

38 Series

Frameless Torque Motor

1.Modular stator and rotor design with optimized magnetic circuit improves the motor’s torque density.

2.The rotor features a large internal hollow space, and the stator can be installed using the customer’s embedded mounting method, allowing flexible customized designs, including installation configurations, and providing greater adaptability for customer-specific systems.

3.Optimized slot-pole combination reduces cogging torque, ensuring smoother motor operation.

4.Compact structure with high integration capability.


Online ConsultationOnline Consultation
Product Parameters

Technical DataTechnical Data

Motor Model
38ZWC15X-138ZWC22X-7
Stator Outer Diametermm38(±0.019)38(±0.019)
Rotor Inner Diametermm18(+0.018)18(+0.018)
Overall Length Lmm11.318.3
Stack Length L1mm0.551.05
Rotor Length L2mm
8.116.1
Number of Slots-1212
Number of Pole Pairs-77
Line ResistanceW0.80.14
Line InductancemH0.90.185
Winding Connection Method-Star ConnectionStar Connection
Insulation Class-FF
Duty Cycle-S2S2
Feedback Method-/
/
Commutation Angle-
120°120°
Dielectric Strength (Withstand Voltage)-
1200VAC/1s/3mA1200VAC/1s/3mA
Insulation Resistance-50MW/500VDC50MW/500VDC
Stator Weightg5087
Rotor Weightgn1020
No-load SpeedRPM1300013000
No-load CurrentA0.6(REF)0.6(REF)
Rated VoltageVDC4848
Rated PowerW110245
Rated TorqueN·m0.10.23
Rated SpeedRPM1047010190
Rated CurrentA2.756.10
Torque ConstantNm/A0.0350.039
Back EMF Constant - RMS ValueVrms/Krpm2.62.88
Peak TorqueN·m0.320.76
Peak CurrentA1124.2
Rotor Inertiag·cm21020

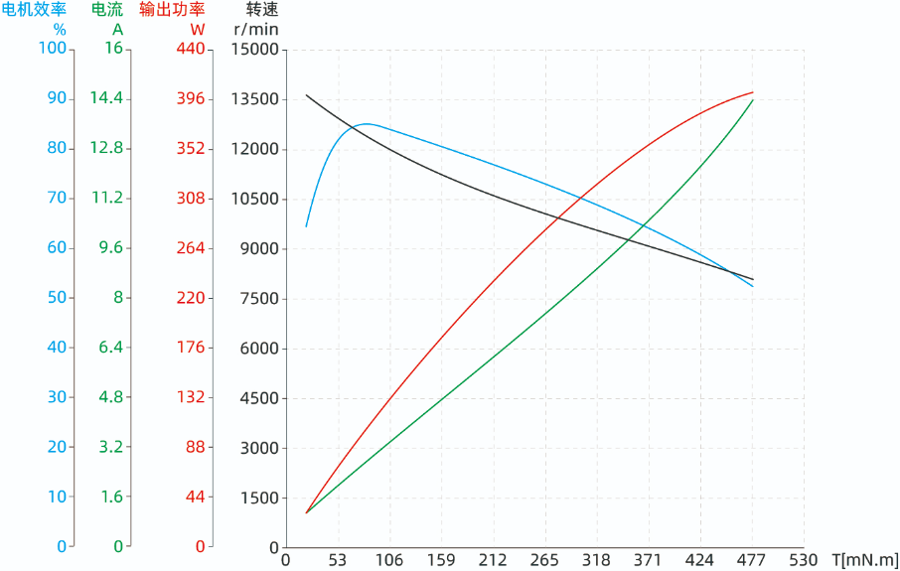

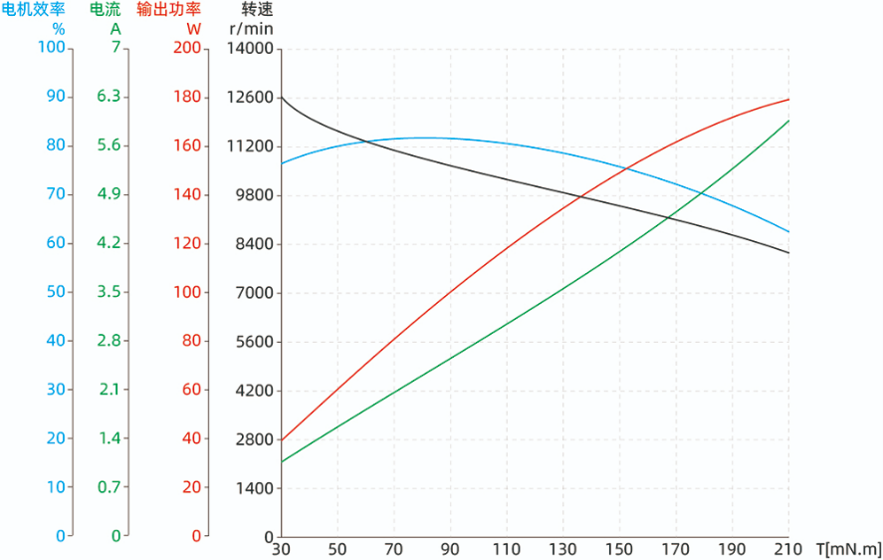

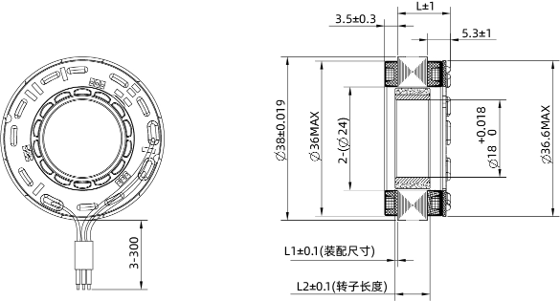

Overall DimensionsOverall Dimensions

Product DrawingProduct Drawing
