43 Series

43 Series

Frameless Torque Motor

  1. Modular stator and rotor design with optimized magnetic circuit improves the motor’s torque density.

  2. The rotor features a large internal hollow space, and the stator can be installed using the customer’s embedded mounting method, allowing flexible customized designs, including installation configurations, and providing greater adaptability for customer-specific systems.

  3. Optimized slot-pole combination reduces cogging torque, ensuring smoother motor operation.

  4. Compact structure with high integration capability.

Online ConsultationOnline Consultation

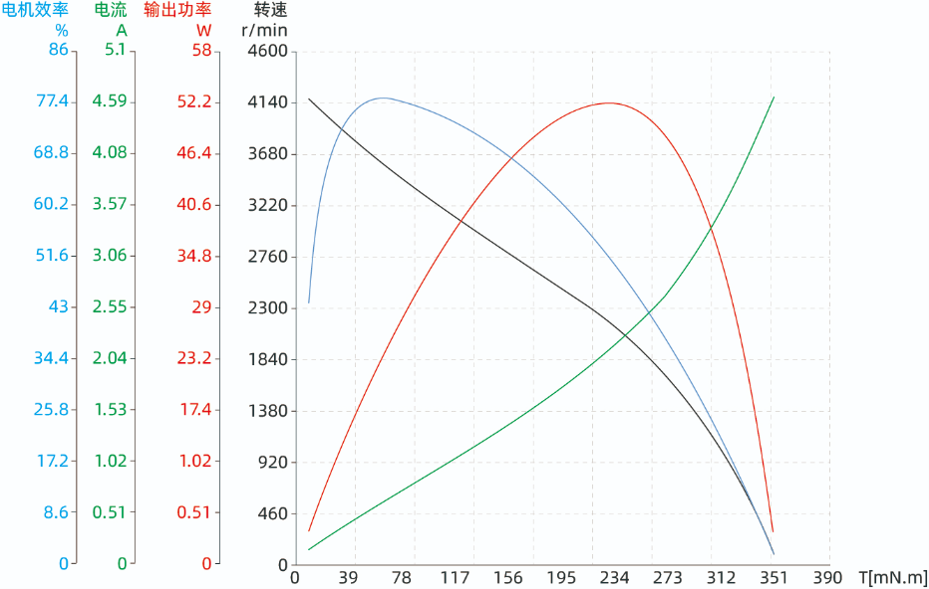

Product Parameters

Technical DataTechnical Data

Motor Model
43ZWC15X-2
Stator Outer Diametermm43(±0.031)
Rotor Inner Diametermm25(+0.052)
Number of Slots-18
Number of Pole Pairs-10
Line ResistanceW3.4
Line InductancemH2.17
Winding Connection Method-Star Connection
Insulation Class-F
Duty Cycle-S2
Feedback Method-
/
Commutation Angle-120°
Dielectric Strength (Withstand Voltage)-1200VAC/1s/3mA
Insulation Resistance-50MW/500VDC
Stator Weightg50
Rotor Weightg10
No-load SpeedRPM4200
No-load CurrentA0.15(REF)
Rated VoltageVDC48
Rated PowerW31.5
Rated TorqueN·m0.1
Rated SpeedRPM3000
Rated CurrentA1
Torque ConstantNm/A0.113
Back EMF Constant - RMS ValueVrms/Krpm8.4
Peak TorqueN·m0.3
Peak CurrentA3.3
Rotor Inertiag·cm220


Overall DimensionsOverall Dimensions

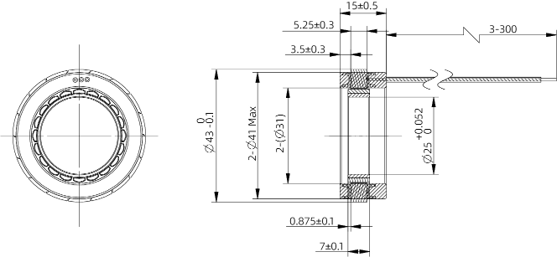

Product DrawingProduct Drawing
