Current Location: Home / Product / Motor / Frameless Torque Motor / 50 Series
50 Series

50 Series

Frameless Torque Motor

  1. Modular stator and rotor design with optimized magnetic circuit improves the motor’s torque density.

  2. The rotor features a large internal hollow space, and the stator can be installed using the customer’s embedded mounting method, allowing flexible customized designs, including installation configurations, and providing greater adaptability for customer-specific systems.

  3. Optimized slot-pole combination reduces cogging torque, ensuring smoother motor operation.

  4. Compact structure with high integration capability.


Online ConsultationOnline Consultation
Product Parameters

Technical DataTechnical Data

Motor Model
50ZWC15X-150ZWC22X-1
Stator Outer Diametermm50±0.03150±0.031
Rotor Inner Diametermm30+0.03330+0.033
Overall Length Lmm13.219.5
Stack Length L1mm8.915.2
Rotor Length L2mm17.7±0.224±0.2
Number of Slots-1818
Number of Pole Pairs-1010
Line ResistanceW0.620.6
Line InductancemH0.440.45
Winding Connection Method-Star ConnectionStar Connection
Insulation Class-FF
Duty Cycle-S2
S2
Feedback Method-Hall SensorHall Sensor
Commutation Angle-
120°120°
Dielectric Strength (Withstand Voltage)-500VAC/1mA/1s500VAC/1mA/1s
Insulation Resistance-100MW/500VDC100MW/500VDC
Stator Weightg77.5124
Rotor Weightg3850
No-load SpeedRPM64005000
No-load CurrentA0.4(REF)1.1(REF)
Rated VoltageVDC4848
Rated PowerW168219
Rated TorqueN·m0.30.51
Rated SpeedRPM53504100
Rated CurrentA4.45.65
Torque ConstantNm/A0.0740.092
Back EMF Constant - RMS ValueVrms/Krpm5.56.8
Peak TorqueN·m0.961.5
Peak CurrentA10.716.1
Rotor Inertiag·cm2100135

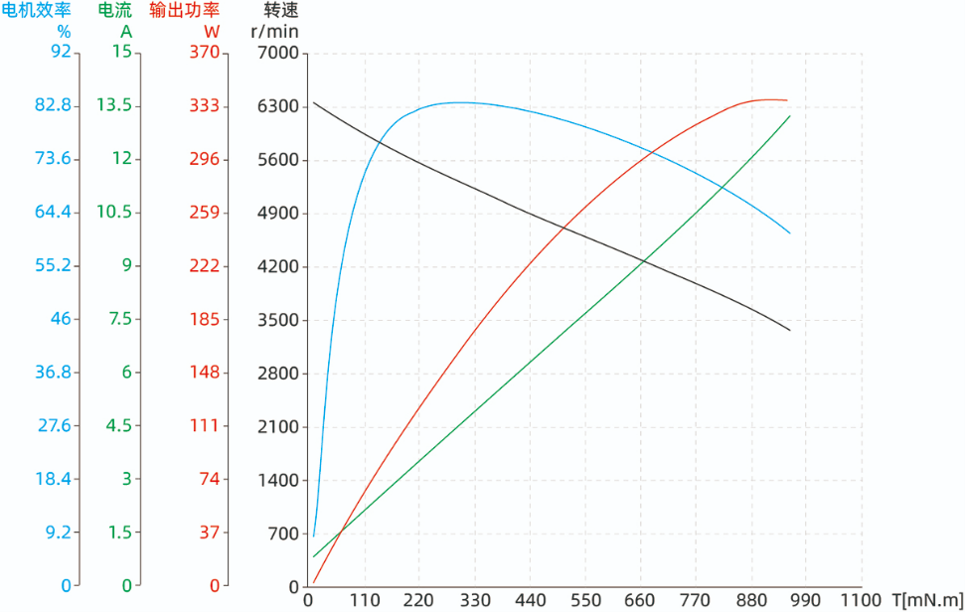

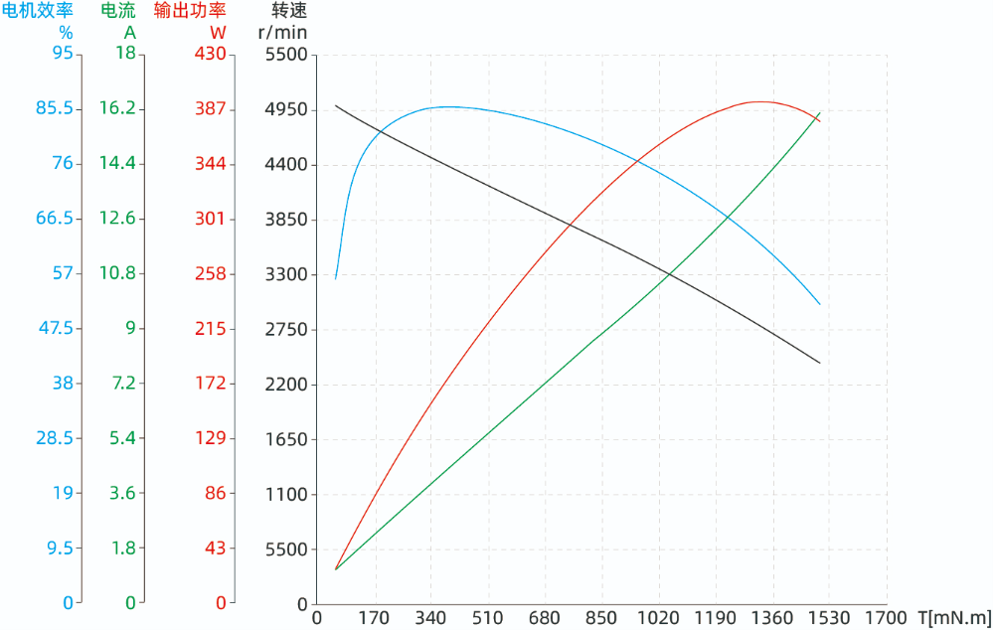

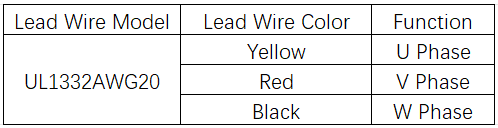

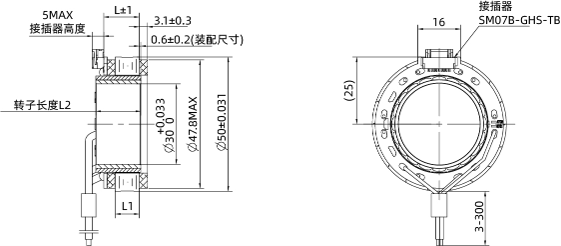

Overall DimensionsOverall Dimensions

Product DrawingProduct Drawing
