60 Series

60 Series

Frameless Torque Motor

  1. Modular stator and rotor design with optimized magnetic circuit improves the motor’s torque density.

  2. The rotor features a large internal hollow space, and the stator can be installed using the customer’s embedded mounting method, allowing flexible customized designs, including installation configurations, and providing greater adaptability for customer-specific systems.

  3. Optimized slot-pole combination reduces cogging torque, ensuring smoother motor operation.

  4. Compact structure with high integration capability.


Online ConsultationOnline Consultation
Product Parameters

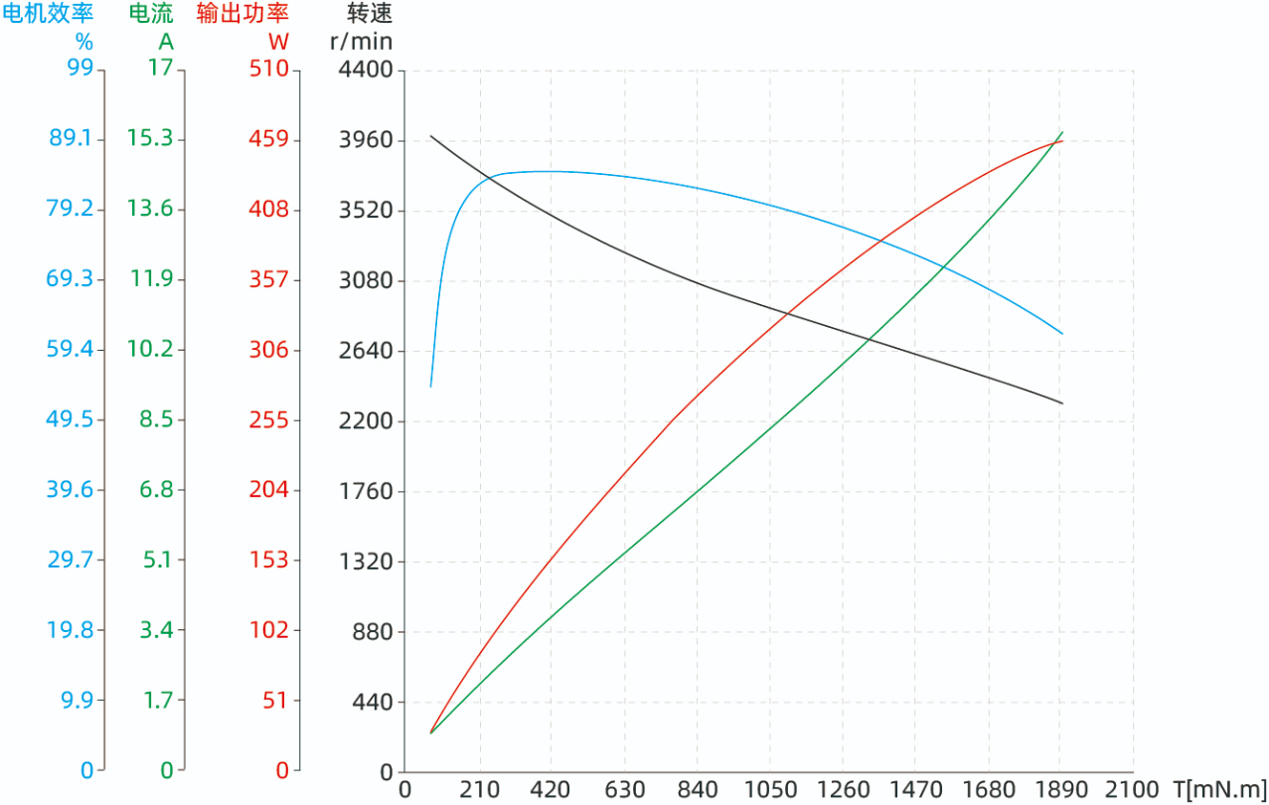

Technical DataTechnical Data

Motor Model
60ZWC25X-1
Stator Outer Diametermm60(0/-0.08)
Rotor Inner Diametermm36(+0.039)
Number of Slots-18
Number of Pole Pairs-10
Line ResistanceW0.24
Line InductancemH0.42
Winding Connection Method-Star Connection
Insulation Class
-F
Duty Cycle-S2
Feedback Method-Hall Sensor
Commutation Angle-120°
Dielectric Strength (Withstand Voltage)-1200VAC/3mA/1s
Insulation Resistance-100MW/500VDC
Stator Weightg167
Rotor Weightg48
No-load SpeedRPM400
No-load CurrentA1.1(REF)
Rated VoltageVDC48
Rated PowerW205
Rated TorqueN·m0.6
Rated SpeedRPM3250
Rated CurrentA5.1
Torque ConstantNm/A0.12
Back EMF Constant - RMS ValueVrms/Krpm8.85
Peak TorqueN·m1.8
Peak CurrentA14.5
Rotor Inertiag·cm2122

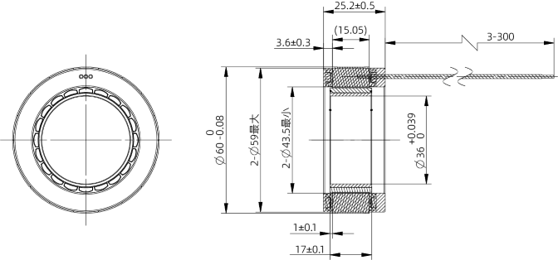

Overall DimensionsOverall Dimensions

Product DrawingProduct Drawing
