Current Location: Home / Product / Motor / Frameless Torque Motor / 70 Series
70 Series

70 Series

Frameless Torque Motor

  1. Modular stator and rotor design with optimized magnetic circuit improves the motor’s torque density.

  2. The rotor features a large internal hollow space, and the stator can be installed using the customer’s embedded mounting method, allowing flexible customized designs, including installation configurations, and providing greater adaptability for customer-specific systems.

  3. Optimized slot-pole combination reduces cogging torque, ensuring smoother motor operation.

  4. Compact structure with high integration capability.


Online ConsultationOnline Consultation
Product Parameters

Technical DataTechnical Data

Motor Mode
70ZWC20X-170ZWC25X-1
Stator Outer Diametermm69±0.03769±0.037
Rotor Inner Diametermm
42+0.03942+0.039
Overall Length Lmm15.921.5
Stack Length L1mm
10.315.9
Number of Slots-
1818
Number of Pole Pairs-
1010
Line ResistanceW0.320.22
Line InductancemH0.520.35
Winding Connection Method-
Star ConnectionStar Connection
Insulation Class-
FF
Duty Cycle-
S2S2
Feedback Method-Hall SensorHall Sensor
Commutation Angle-
120°120°
Dielectric Strength (Withstand Voltage)-
500VAC/1mA/1s500VAC/1mA/1s
Insulation Resistance-
100MW/500VDC100MW/500VDC
Stator Weightg
167.5224
Rotor Weightg
7290
No-load SpeedRPM43504400
No-load CurrentA0.5(REF)1.3(REF)
Rated VoltageVDC
4848
Rated PowerW216456
Rated TorqueN·m0.551.3
Rated SpeedRPM37503350
Rated CurrentA5.411.4
Torque ConstantNm/A0.1090.13
Back EMF Constant - RMS ValueVrms/Krpm8.19.6
Peak TorqueN·m1.652.6
Peak CurrentA14.221
Rotor Inertiag·cm2358455

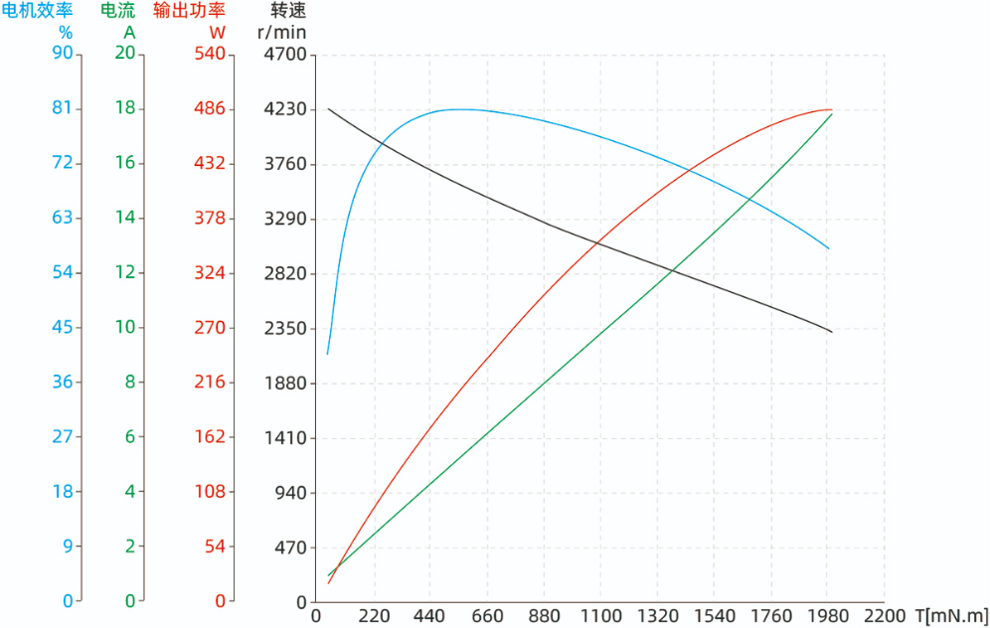

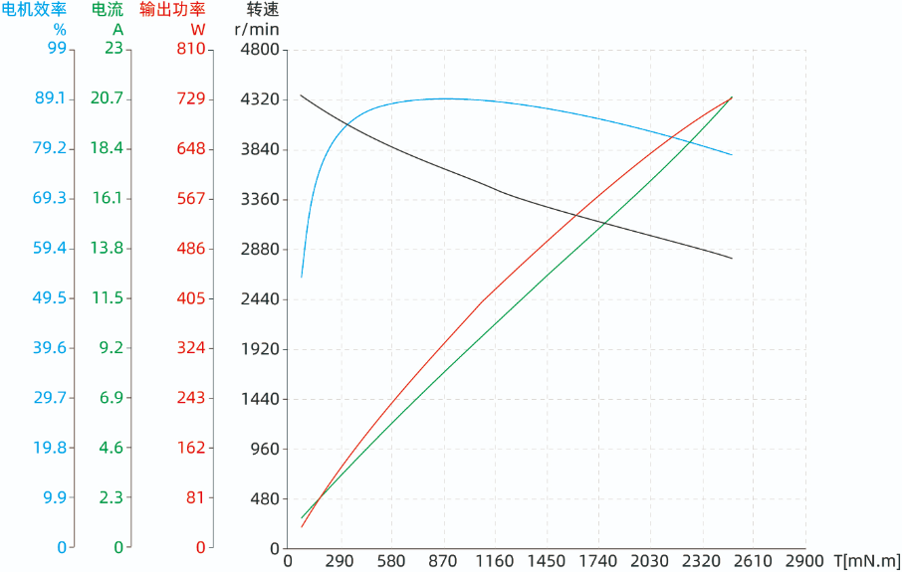

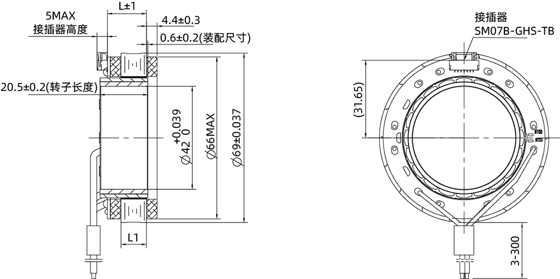

Overall DimensionsOverall Dimensions

Product DrawingProduct Drawing
