85 Series

85 Series

Frameless Torque Motor

  1. Modular stator and rotor design with optimized magnetic circuit improves the motor’s torque density.

  2. The rotor features a large internal hollow space, and the stator can be installed using the customer’s embedded mounting method, allowing flexible customized designs, including installation configurations, and providing greater adaptability for customer-specific systems.

  3. Optimized slot-pole combination reduces cogging torque, ensuring smoother motor operation.

  4. Compact structure with high integration capability.


Online ConsultationOnline Consultation
Product Parameters

Technical DataTechnical Data

Motor Model
85ZWC25X-185ZWC35X-1
Stator Outer Diametermm85±0.04385±0.043
Rotor Inner Diametermm52+0.04652+0.046
Overall Length Lmm20.330.1
Stack Length L1mm13.823.6
Number of Slotsmm1818
Number of Pole Pairsmm1010
Line ResistanceW0.140.06
Line InductancemH0.340.12
Winding Connection Method-Star ConnectionStar Connection
Insulation Class-FF
Duty Cycle-
S2S2
Feedback Method-Hall SensorHall Sensor
Commutation Angle-120°120°
Dielectric Strength (Withstand Voltage)-500VAC/1mA/1s500VAC/1mA/1s
Insulation Resistance-100MW/500VDC100MW/500VDC
Stator Weightg324460
Rotor Weightg136189
No-load SpeedRPM36504700
No-load CurrentA
0.6(REF)2.4(REF)
Rated VoltageVDC4848
Rated PowerW408827
Rated TorqueN·m1.32
Rated SpeedRPM30003950
Rated CurrentA8.620.6
Torque ConstantNm/A0.160.117
Back EMF Constant - RMS ValueVrms/Krpm9.78.66
Peak TorqueN·m3.96
Peak CurrentA25.762
Rotor Inertiag·cm210861520


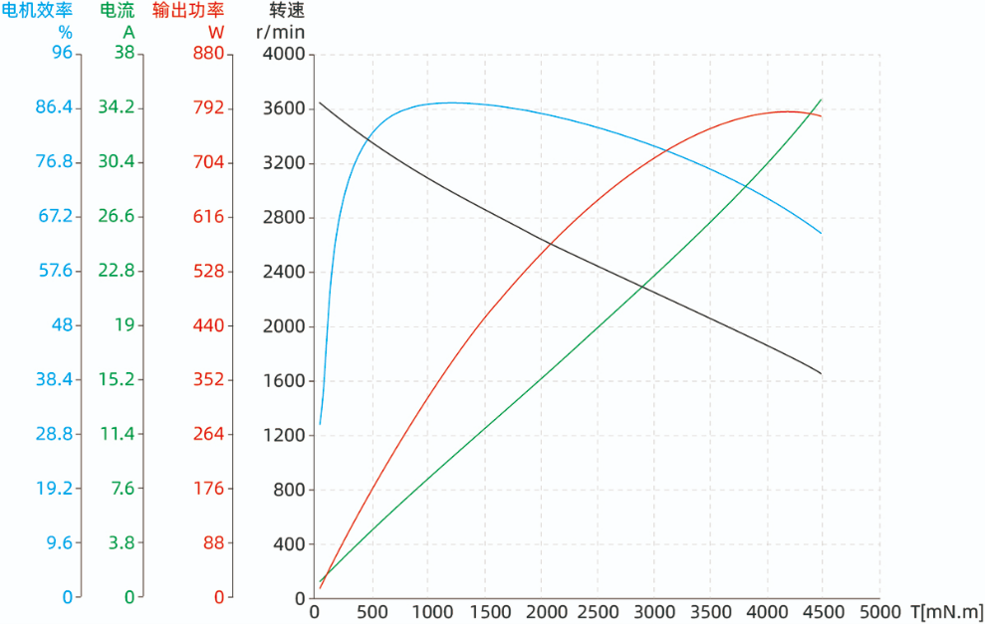

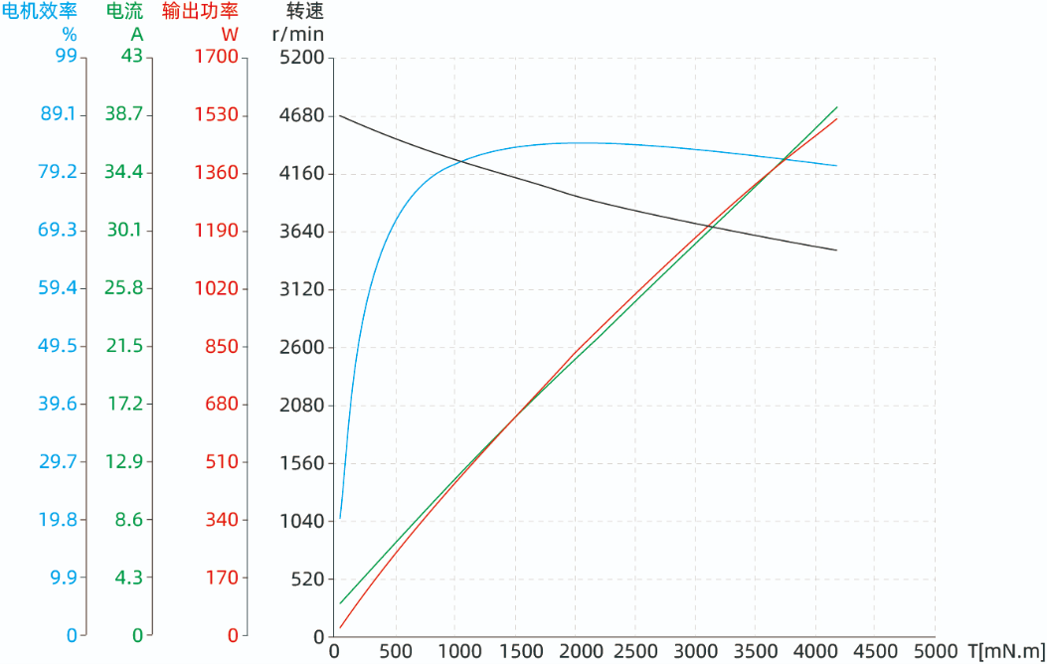

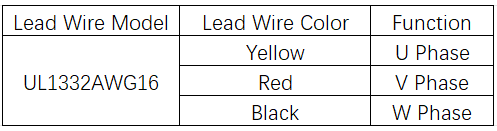

Overall DimensionsOverall Dimensions

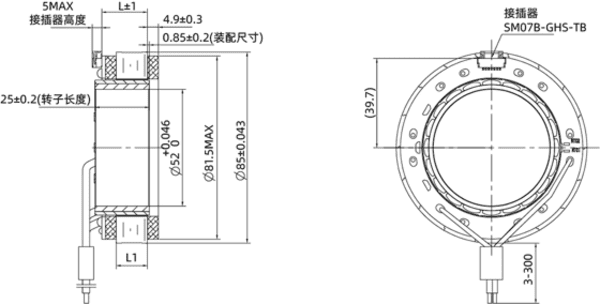

Product DrawingProduct Drawing
