115 Series

115 Series

Frameless Torque Motor

  1. Modular stator and rotor design with optimized magnetic circuit improves the motor’s torque density.

  2. The rotor features a large internal hollow space, and the stator can be installed using the customer’s embedded mounting method, allowing flexible customized designs, including installation configurations, and providing greater adaptability for customer-specific systems.

  3. Optimized slot-pole combination reduces cogging torque, ensuring smoother motor operation.

  4. Compact structure with high integration capability.


Online ConsultationOnline Consultation
Product Parameters

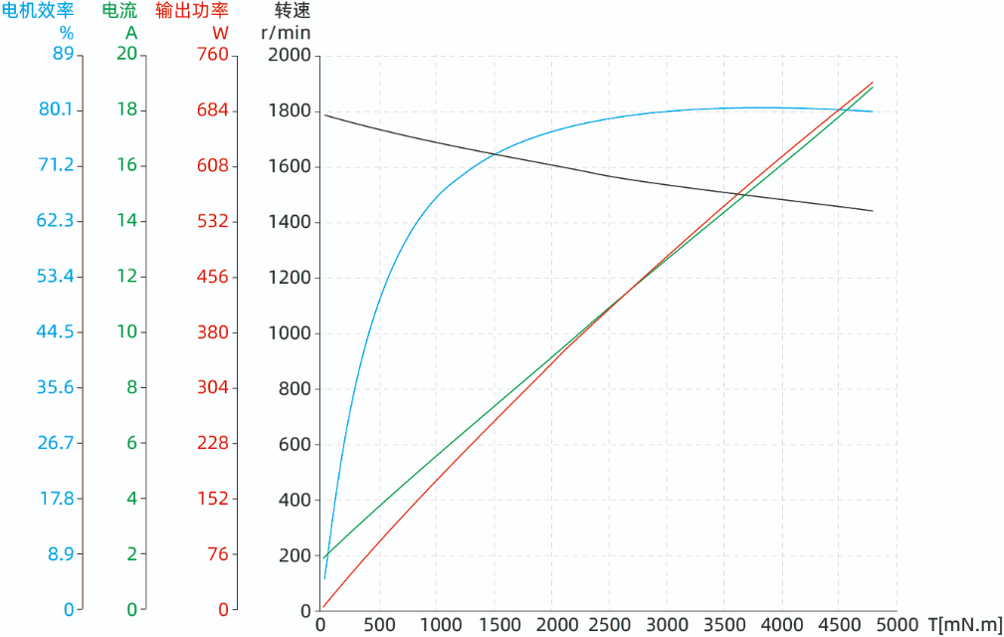

Technical DataTechnical Data

Motor Model
115ZWC37X-1
Stator Outer Diametermm115±0.027
Rotor Inner Diametermm74+0.03
Number of Slots-27
Number of Pole Pairs-15
Line ResistanceW0.122
Line InductancemH0.477
Winding Connection Method-Star Connection
Insulation Class-F
Duty Cycle-S2
Feedback Method-Hall Sensor
Commutation Angle-120°
Dielectric Strength (Withstand Voltage)-1200VAC/1s/3mA
Insulation Resistance-50MW/500VDC
Stator Weightg815
Rotor Weightg245
No-load SpeedRPM1750
No-load CurrentA1.8(REF)
Rated VoltageVDC48
Rated PowerW570
Rated TorqueN·m3.9
Rated SpeedRPM1400
Rated CurrentA14.1
Torque ConstantNm/A0.281
Back EMF Constant - RMS ValueVrms/Krpm20.8
Peak TorqueN·m12.7
Peak CurrentA47
Rotor Inertiag·cm23930


Overall DimensionsOverall Dimensions

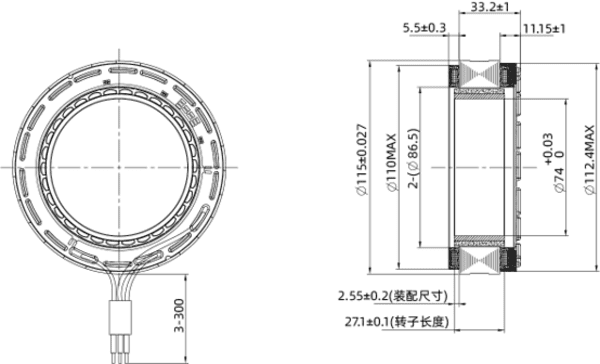

Product DrawingProduct Drawing
