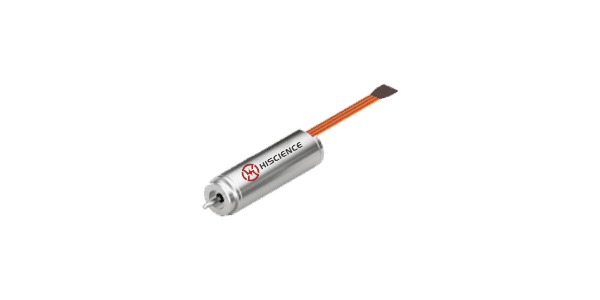

8 Series

8 Series

Slotless Brushless DC Motor

  1. The slotless motor design eliminates cogging torque caused by uneven magnetic flux distribution in slotted motors.

  2. It eliminates core losses in the stator and surface wear between the stator and rotor.

  3. Slotless motors offer high durability, low electrical noise, and high efficiency, with maximum motor efficiency reaching 90%.

  4. Slotless motors are suitable for drive systems requiring rapid movement and relatively high power.


Online ConsultationOnline Consultation
Product Parameters

Technical DataTechnical Data

Motor Model
8ZWWC25
Number of Pole Pairs-1
Line ResistanceW6.1
Line InductancemH0.085
Winding Connection Method-Delta Connection
Insulation Class-B
Duty Cycle-S2
Dielectric Strength (Withstand Voltage)-300VAC/1KHz/1mA/1s
Insulation Resistance-100MW/300VDC



Weightg7.3
Rated VoltageV
12
Rated PowerW3.25
Rated TorquemN·m0.8
Rated SpeedRPM38200
Rated CurrentA0.45
No-load SpeedRPM48000
No-load CurrentA0.056
Motor Efficiency%60
Noise (Ambient Noise 20 dB, Test Distance 1 m)dB<50
Thermal Resistance, Housing-to-Ambient (No-load)K/W12.52
Ambient Temperature°C22.3
Maximum Winding Temperature°C63
Torque ConstantmN·m/A1.77
Back EMF Constant – PeakV/Krpm0.26
Back EMF Constant – RMSV/Krpm0.19
Peak TorquemN·m3.49
Peak CurrentA2
Rotor Inertiag·cm20.016
Mechanical Time Constantms3.11
End Cover-
Stainless Steel
Bearing-Deep Groove Ball Bearing
Magnet-Sintered NdFeB
Shaft-Carbon Steel


Overall DimensionsOverall Dimensions

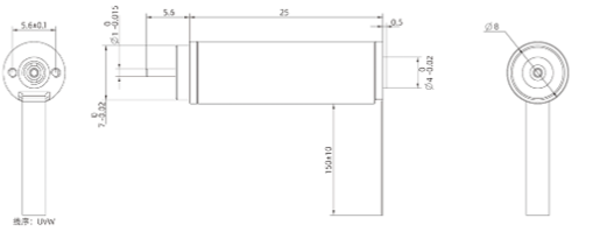

Product DrawingProduct Drawing
