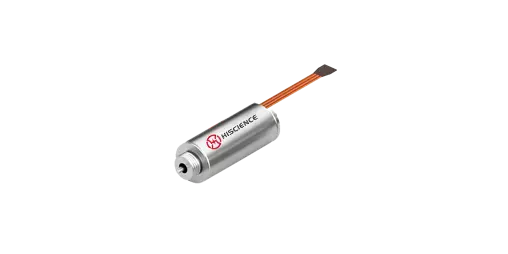

10 Series

10 Series

Slotless Brushless DC Motor

  1. The slotless motor design eliminates cogging torque caused by uneven magnetic flux distribution in slotted motors.

  2. It eliminates core losses in the stator and surface wear between the stator and rotor.

  3. Slotless motors offer high durability, low electrical noise, and high efficiency, with maximum motor efficiency reaching 90%.

  4. Slotless motors are suitable for drive systems requiring rapid movement and relatively high power.


Online ConsultationOnline Consultation

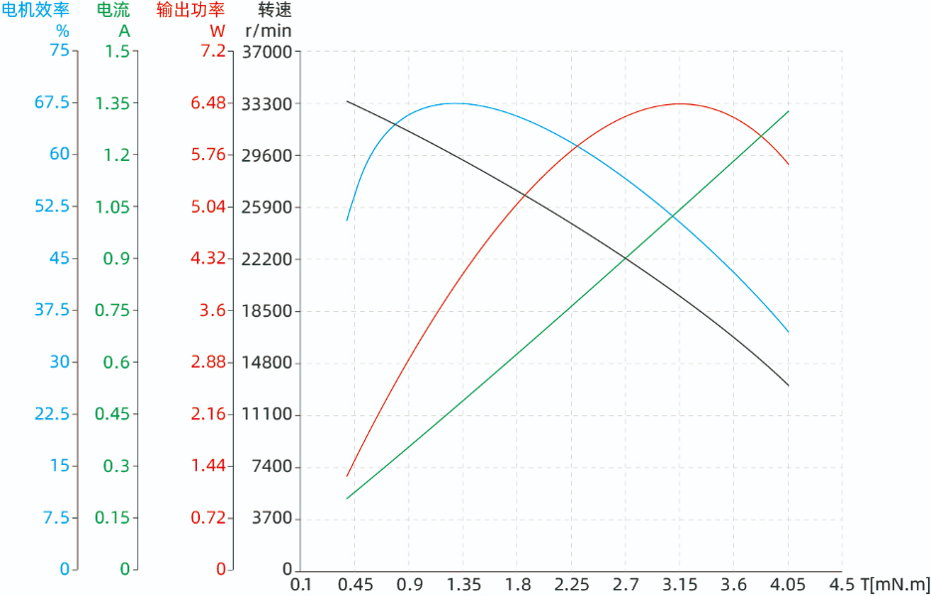

Product Parameters

Technical DataTechnical Data

Motor Mode
10ZWWC26
Number of Pole Pairs-1
Line ResistanceW4.5
Line InductancemH0.15
Winding Connection Method-Delta Connection
Insulation Class-B
Duty Cycle-S2
Feedback Method-Hall Sensor
Commutation Angle-120°
Dielectric Strength (Withstand Voltage)-300VAC/1KHz/1mA/1s
Insulation Resistance-100MW/300VDC
Weightg14.3
Rated VoltageV12
Rated PowerW4.4
Rated TorquemN·m1.5
Rated SpeedRPM28500
Rated CurrentA0.56
No-load SpeedRPM35000
No-load CurrentA0.065
Motor Efficiency%
67
Noise (Ambient Noise 20 dB, Test Distance 1 m)dB<50
Thermal Resistance, Housing-to-Ambient (No-load)K/W40.2
Motor Thermal Time ConstantS
269
Ambient Temperature°C22.3
Maximum Winding Temperature°C80
Torque ConstantmN·m/A2.68
Back EMF Constant – PeakV/Krpm0.4
Back EMF Constant – RMSV/Krpm0.28
Peak TorquemN·m7.15
Peak CurrentA3
Rotor Inertiag·cm20.026
Mechanical Time Constantms1.63
End Cover-Stainless Steel
Bearing-Deep Groove Ball Bearing
Magnet-Sintered NdFeB
Shaft-Carbon Steel

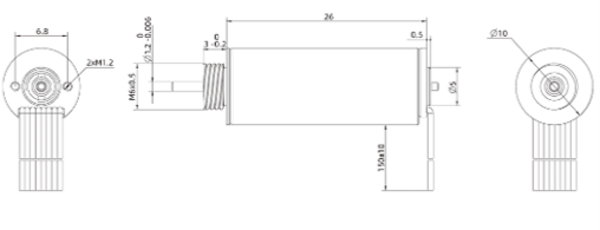

Overall DimensionsOverall Dimensions

Product DrawingProduct Drawing
