13 Series

13 Series

Slotless Brushless DC Motor

  1. The slotless motor design eliminates cogging torque caused by uneven magnetic flux distribution in slotted motors.

  2. It eliminates core losses in the stator and surface wear between the stator and rotor.

  3. Slotless motors offer high durability, low electrical noise, and high efficiency, with maximum motor efficiency reaching 90%.

  4. Slotless motors are suitable for drive systems requiring rapid movement and relatively high power.


Online ConsultationOnline Consultation

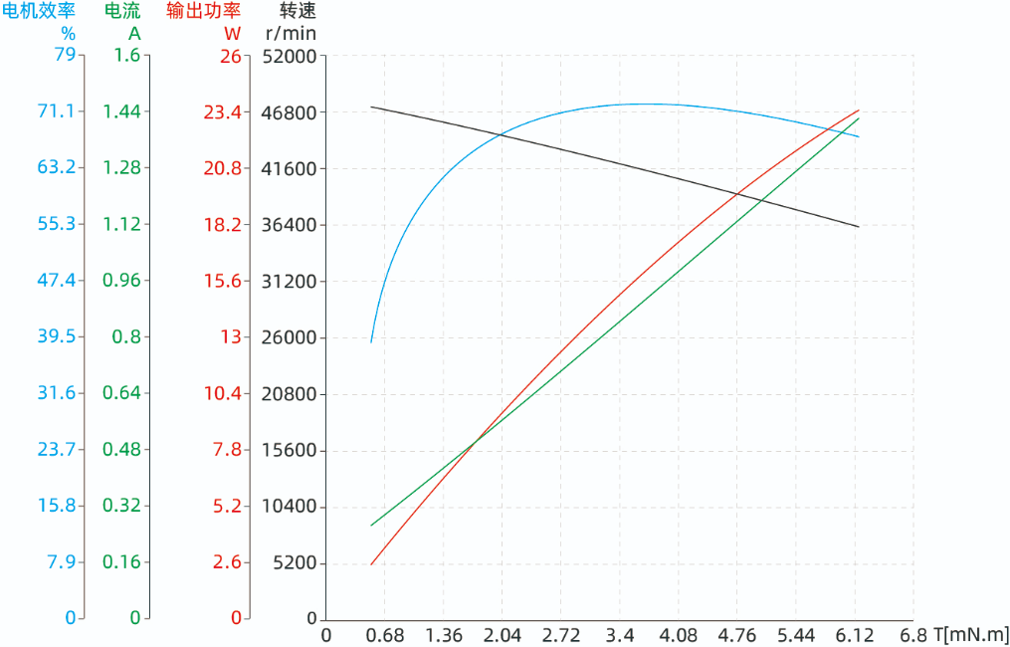

Product Parameters

Technical DataTechnical Data

Motor Model
13ZWWC37
Number of Pole Pairs-1
Line ResistanceW3.65
Line InductancemH0.113
Winding Connection Method-Delta Connection
Insulation Class-B
Duty Cycle-S2
Feedback Method-Hall Sensor
Commutation Angle-120°
Dielectric Strength (Withstand Voltage)-300VAC/1KHz/1mA/1s
Insulation Resistance-100MW/300VDC
Weightg28.6
Rated VoltageV24
Rated PowerW11
Rated TorquemN·m2.7
Rated SpeedRPM43500
Rated CurrentA0.66
No-load SpeedRPM446800
No-load CurrentA0.086
Motor Efficiency%69
Noise (Ambient Noise 20 dB, Test Distance 1 m)dB<50
Thermal Resistance, Housing-to-Ambient (No-load)K/W20
Motor Thermal Time ConstantS315
Ambient Temperature°C22.3
Maximum Winding Temperature°C80
Torque ConstantmN·m/A4.06
Back EMF Constant – PeakV/Krpm0.6
Back EMF Constant – RMSV/Krpm0.43
Peak TorquemN·m26.73
Peak CurrentA7
Rotor Inertiag·cm20.14
Mechanical Time Constantms3.09
End Cover-
Stainless Steel
Bearing-Deep Groove Ball Bearing
Magnet-Sintered NdFeB
Shaft-Carbon Steel

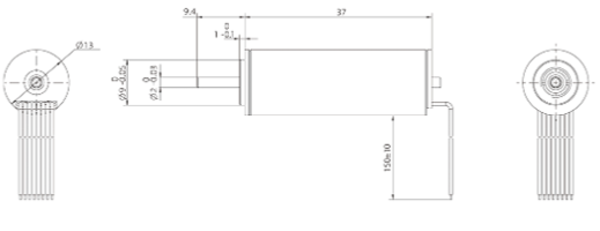

Overall DimensionsOverall Dimensions

Product DrawingProduct Drawing
