14 Series

14 Series

Slotless Brushless DC Motor

  1. The slotless motor design eliminates cogging torque caused by uneven magnetic flux distribution in slotted motors.

  2. It eliminates core losses in the stator and surface wear between the stator and rotor.

  3. Slotless motors offer high durability, low electrical noise, and high efficiency, with maximum motor efficiency reaching 90%.

  4. Slotless motors are suitable for drive systems requiring rapid movement and relatively high power.


Online ConsultationOnline Consultation

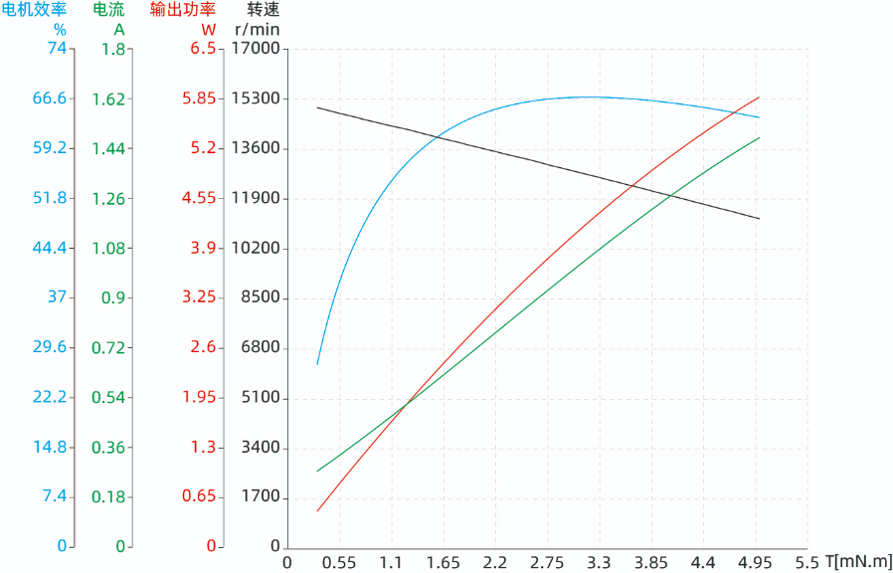

Product Parameters

Technical DataTechnical Data

Motor Model
14ZWWC36
Number of Pole Pairs-1
Line ResistanceW0.87
Line InductancemH0.04
Winding Connection Method-Delta Connection
Insulation Class-B
Duty Cycle-S1
Feedback Method-Hall Sensor
Commutation Angle-120°
Dielectric Strength (Withstand Voltage)-500VAC/1KHz/1mA/1s
Insulation Resistance-100MW/500VDC
Weightg34.2
Rated VoltageV6
Rated PowerW5.1
Rated TorquemN·m4
Rated SpeedRPM12000
Rated CurrentA1.3
No-load SpeedRPM15000
No-load CurrentA0.18
Motor Efficiency%66
Noise (Ambient Noise 20 dB, Test Distance 1 m)dB<50
Thermal Resistance, Housing-to-Ambient (No-load)K/W20.6
Motor Thermal Time ConstantS400
Ambient Temperature°C22.3
Maximum Winding Temperature°C70
Torque ConstantmN·m/A3.08
Back EMF Constant – PeakV/Krpm0.46
Back EMF Constant – RMSV/Krpm0.32
Peak TorquemN·m20
Peak CurrentA6
Rotor Inertiag·cm20.15
Mechanical Time Constantms1.38
End Cover-
Stainless Steel
Bearing-Deep Groove Ball Bearing
Magnet-Sintered NdFeB
Shaft-Carbon Steel

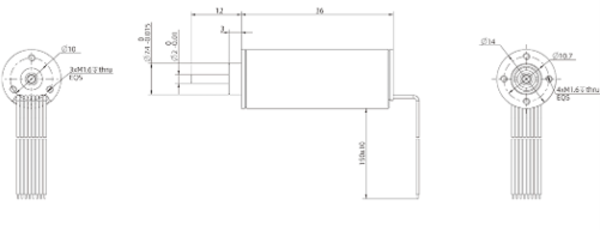

Overall DimensionsOverall Dimensions

Product DrawingProduct Drawing
