16 Series

16 Series

Slotless Brushless DC Motor

  1. The slotless motor design eliminates cogging torque caused by uneven magnetic flux distribution in slotted motors.

  2. It eliminates core losses in the stator and surface wear between the stator and rotor.

  3. Slotless motors offer high durability, low electrical noise, and high efficiency, with maximum motor efficiency reaching 90%.

  4. Slotless motors are suitable for drive systems requiring rapid movement and relatively high power.


Online ConsultationOnline Consultation

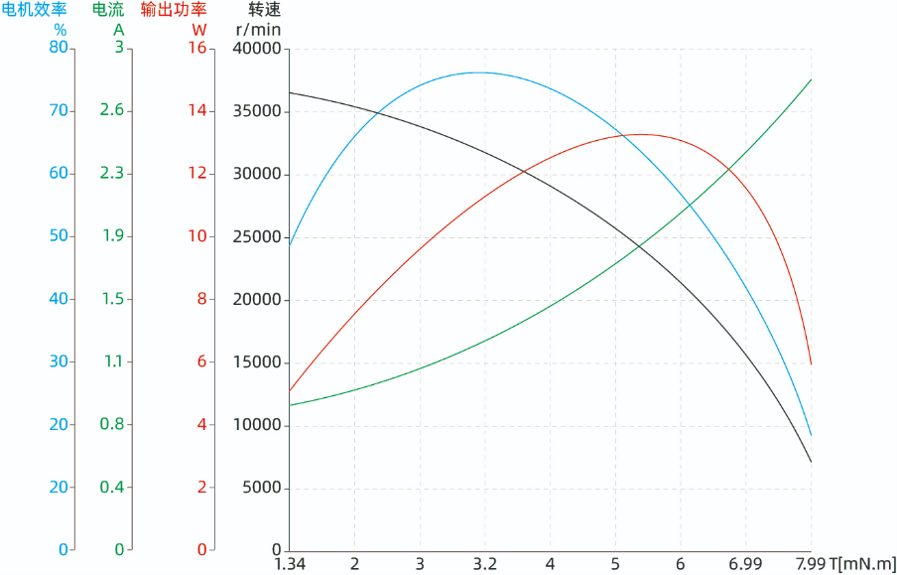

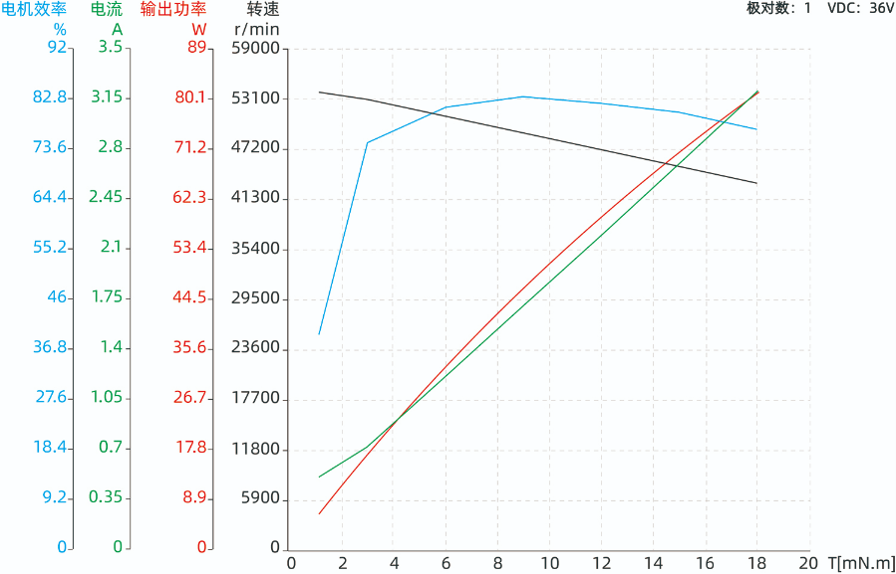

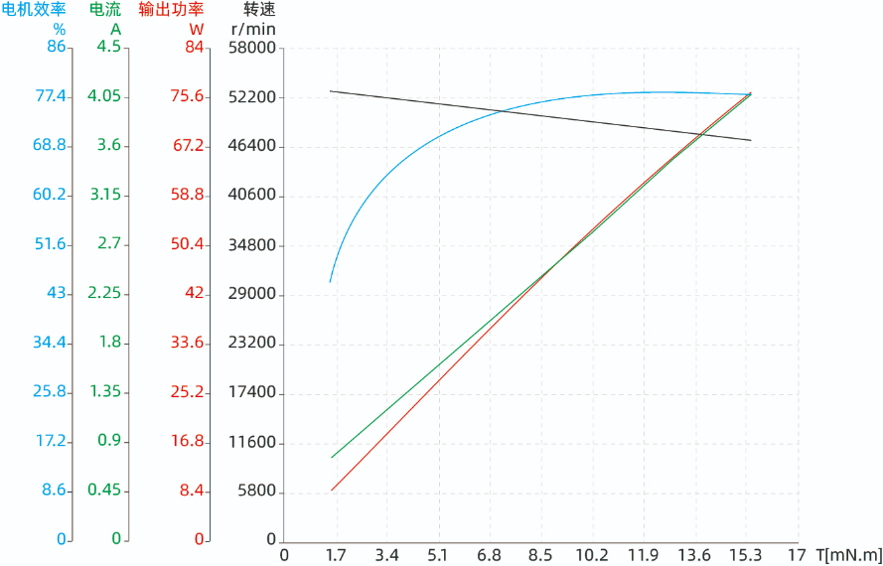

Product Parameters

Technical DataTechnical Data

Motor Model


16ZWWC24

16ZWWC40

16ZWWC56

Number of Pole Pairs

-

1

1

1

1

1

1

1

Line Resistance

W

2.408

0.63

1.31

1.85

3.15

0.3196

0.4971

Line Inductance

mH

0.067

0.033

0.045

0.096

0.2

0.014

0.033

Winding Connection

-

Delta Connection

Star Connection

Star Connection

Star Connection

Star Connection

Delta Connection

Star Connection

Insulation Class

-

B

B

B

B

B

B

B

Duty Cycle

-

S2

S2

S2

S2

S2

S2

S2

Feedback Method

-

Hall Sensor

Hall Sensor

Hall Sensor

Hall Sensor

Hall Sensor

Hall Sensor

Hall Sensor

Commutation Angle

-

120°

120°

120°

120°

120°

120°

120°

Insulation Strength (Withstand Voltage)

-

500VAC/

1KHz/

1mA/1s

500VAC/1KHz/1M/1s

500VAC/1KHz/1mA/1s

500VAC/1KHz/1mA/1s

500VAC/1KHz/1mA/1s

500VAC/1KHz/1mA/1s

500VAC/

1KHz/

1mA/1s

Insulation Resistance

-

100MW/

500VDC

100MW/500VDC

100MW/500VDC

100MW/500VDC

100MW/500VDC

100MW/500VDC

100MW/

500VDC

Weight

g

26.5

47

47

47

47

47

63

Rated Voltage

v

12

18

24

36

48

12

24

Rated Power

W

10.8

33

39

39

39

27.26

73.5

Rated Torque

mN·m

3.2

7.4

7.4

7.5

7.4

7.5

14.6

Rated Speed

RPM

32300

44000

51300

50000

50000

34700

41800

Rated Current

A

1.21

2.19

1.96

1.32

0.95

3

3.81

No-load Speed

RPM

44000

50000

58000

56000

56000

40000

54000

No-load Current

A

0.35

0.31

0.22

0.15

0.12

0.4

0.5

Motor Efficiency

%

75.5

85

84

82.4

84.92

81.4

87.1

Noise (Ambient Noise 20 dB, Test Distance 1 m)

dB

<50

<50

<50

<50

<50

<50

<50

Thermal Resistance, Housing-to-Ambient

K/W

17

16.7

16.7

16.7

16.7

16.7

13.8

Motor Thermal Time Constant

S

1.62

1.79

1.79

1.79

1.79

1.79

4.23

Ambient Temperature

℃

22.3

22.3

22.3

22.3

22.3

22.3

22.3

Maximum Winding Temperature

℃

100

100

100

100

100

100

100

Torque Constant

mN·m/A

2.6

3.38

3.78

5.66

7.75

2.86

4.24

Back EMF Constant – Peak

V/Krpm

0.38

0.50

0.56

0.84

1.15

0.42

0.62

Back EMF Constant – RMS

V/Krpm

0.27

0.35

0.40

0.59

0.81

0.3

0.44

Peak Torque

mN·m

9

96.65

69.21

110.19

118.13

53

140

Peak Current

A

4.9

29

18

19

15

19

29

Rotor Inertia

g·cm2

0.3

0.583

0.583

0.583

0.583

0.58

0.8

Mechanical Time Constant

ms

10.69

3.21

5.35

3.36

3.06

2.28

2.21

End Cover

-

Stainless Steel

Stainless Steel

Stainless Steel

Stainless Steel

Stainless Steel

Stainless Steel

Stainless Steel

Bearing

-

Deep Groove Ball Bearing

Deep Groove Ball Bearing

Deep Groove Ball Bearing

Deep Groove Ball Bearing

Deep Groove Ball Bearing

Deep Groove Ball Bearing

Deep Groove Ball Bearing

Magnet

-

Sintered NdFeB

Sintered NdFeB

Sintered NdFeB

Sintered NdFeB

Sintered NdFeB

Sintered NdFeB

Sintered NdFeB

Shaft

-

Carbon Steel

Carbon Steel

Carbon Steel

Carbon Steel

Carbon Steel

Carbon Steel

Carbon Steel

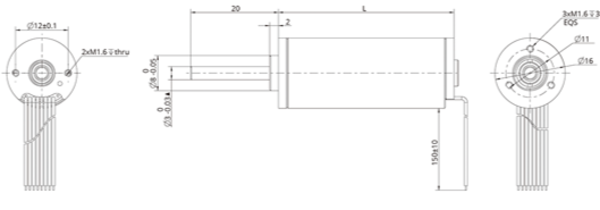

Overall DimensionsOverall Dimensions
