Name: 22 Series
Rating: 4.5 (100 reviews)

Technical Data

Motor Model		22ZWWC48					22ZWWC64
Number of Pole Pairs	-	1	1	1	1	1	1
Line Resistance	W	0.26	0.3	0.57	1	0.94	0.63
Line Inductance	mH	0.018	0.027	0.06	0.11	0.057	0.061
Winding Connection	-	Star Connection	Star Connection	Star Connection	Star Connection	Star Connection	Star Connection
Insulation Class	-	B	B	B	B	B	B
Duty Cycle	-	S2	S2	S2	S2	S1	S2
Feedback Method	-	Hall Sensor	Hall Sensor	Hall Sensor	Hall Sensor	Hall Sensor	Hall Sensor
Commutation Angle	-	120°	120°	120°	120°	120°	120°
Insulation Strength (Withstand Voltage)	-	500VAC/1KHz/1mA/1s	500VAC/1KHz/1mA/1s	500VAC/1KHz/1mA/1s	500VAC/1KHz/1mA/1s	500VAC/1KHz/1mA/1s	500VAC/1KHz/1mA/1s
Insulation Resistance	-	100MW/500VDC	100MW/500VDC	100MW/500VDC	100MW/500VDC	100MW/500VDC	100MW/ 500VDC
Weight	g	110	110	110	110	110	110
Rated Voltage	v	18	24	36	48	24	24
Rated Power	W	83	100	100	100	53	38.24
Rated Torque	mN·m	20	20	20	20	20	20
Rated Speed	RPM	40000	49000	47400	49600	20100	18200
Rated Current	A	7.95	4.68	3.12	2.29	3	1.86
No-load Speed	RPM	50000	55000	53000	54000	25700	19300
No-load Current	A	0.3	0.4	0.32	0.14	0.18	0.126
Motor Efficiency	%	87	89	89	91	81	89.7
Noise (Ambient Noise 20 dB, Test Distance 1 m)	dB	<50	<50	<50	<50	<50	<50
Thermal Resistance, Housing-to-Ambient	K/W	12.6	11.9	11.5	12.8	12.2	9.8
Motor Thermal Time Constant	S	648	648	648	648	620	1.86
Ambient Temperature	℃	21.4	22	24.7	21.2	24	22.3
Maximum Winding Temperature	℃	155	155	155	155	82	100
Torque Constant	mN·m/A	2.52	4.27	6.41	8.74	8.33	11.87
Back EMF Constant – Peak	V/Krpm	0.37	0.63	0.95	1.29	1.23	1.758
Back EMF Constant – RMS	V/Krpm	0.26	0.45	0.67	0.91	0.87	1.24
Peak Torque	mN·m	116.11	341.76	404.72	419.33	212.77	320
Peak Current	A	46	80	63	48	26	33.5
Rotor Inertia	g·cm²	1.15	1.15	1.15	1.15	1.15	3
Mechanical Time Constant	ms	4.72	1.89	1.60	1.51	1.56	1.34
End Cover	-	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
Bearing	-	Deep Groove Ball Bearing	Deep Groove Ball Bearing	Deep Groove Ball Bearing	Deep Groove Ball Bearing	Deep Groove Ball Bearing	Deep Groove Ball Bearing
Magnet	-	Sintered NdFeB	Sintered NdFeB	Sintered NdFeB	Sintered NdFeB	Sintered NdFeB	Sintered NdFeB
Shaft	-	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel

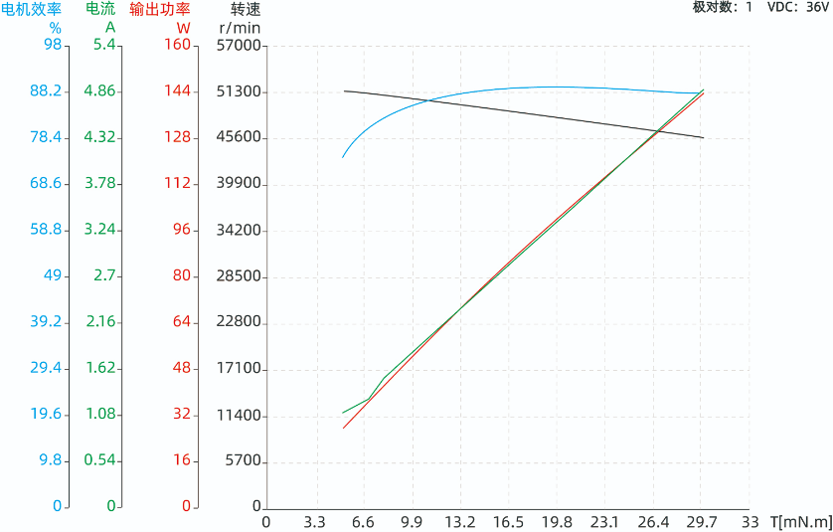

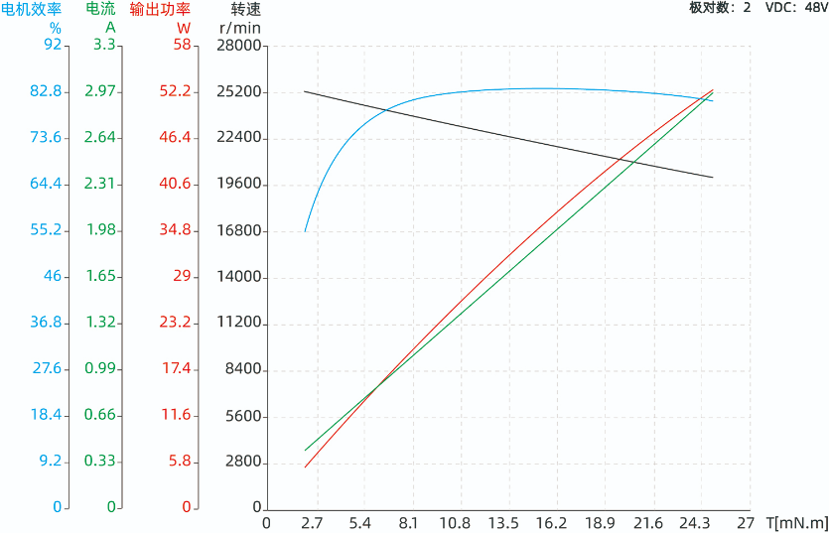

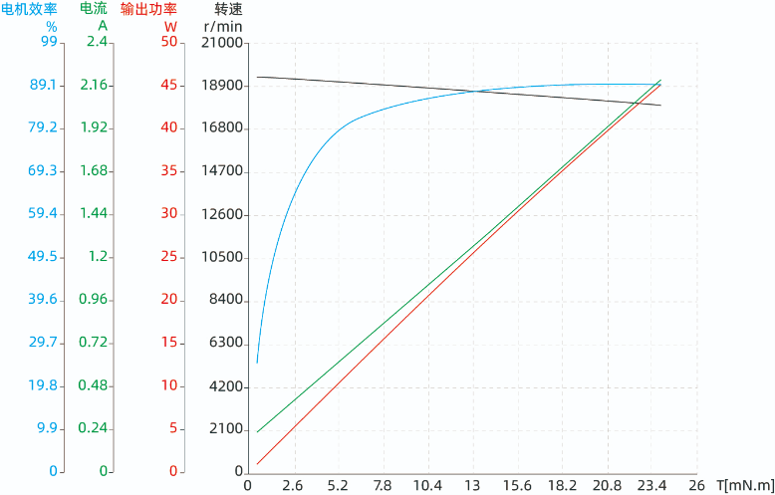

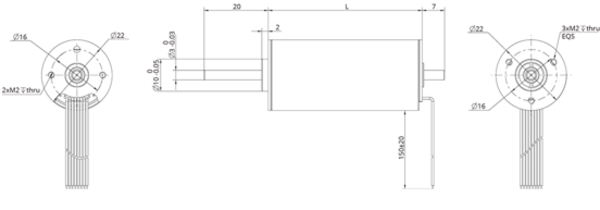

Overall Dimensions

Product Drawing
