Name: 36 Series
Rating: 4.5 (100 reviews)

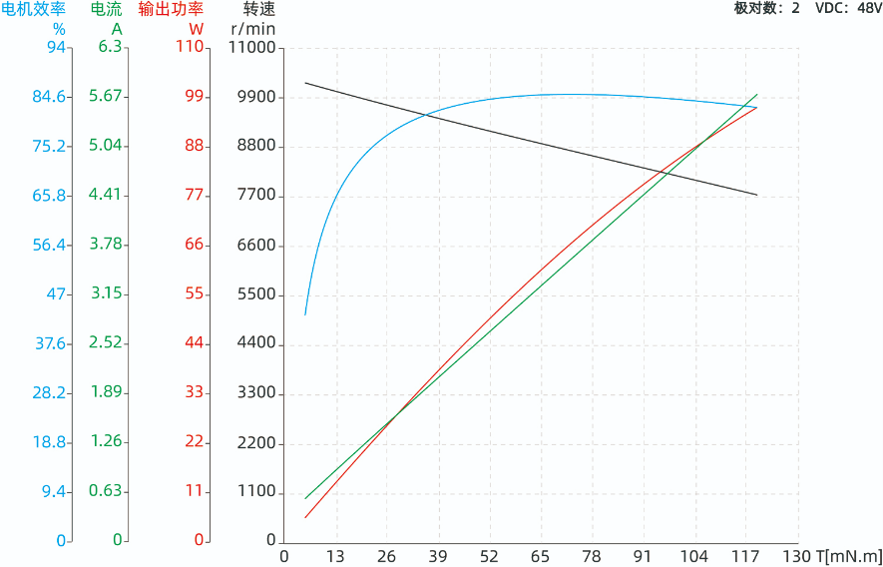

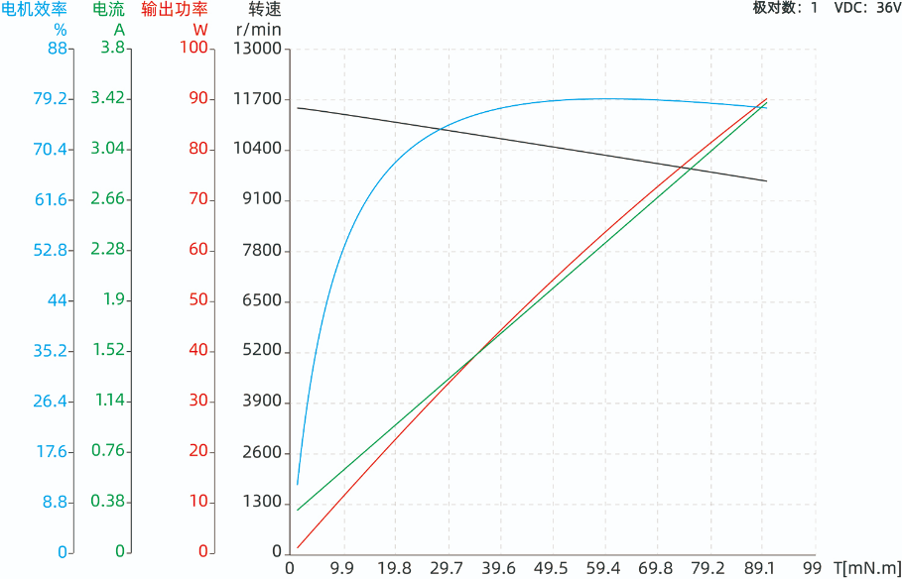

Technical Data

Motor Model		36ZWWC60
Number of Pole Pairs	-	1	1	1	1	2
Line Resistance	W	0.6	0.68	1.45	2.1	0.41
Line Inductance	mH	0.08	0.1	0.19	0.27	0.042
Winding Connection	-	Star Connection	Star Connection	Star Connection	Star Connection	Star Connection
Insulation Class	-	B	B	B	B	B
Duty Cycle	-	S2	S2	S2	S2	S1
Feedback Method	-	Hall Sensor	Hall Sensor	Hall Sensor	Hall Sensor	Hall Sensor
Commutation Angle	-	120°	120°	120°	120°	120°
Insulation Strength (Withstand Voltage)	-	500VAC/1KHz/1mA/1s	500VAC/1KHz/1mA/1s	500VAC/1KHz/1mA/1s	500VAC/1KHz/1mA/1s	500VAC/1KHz/1mA/1s
Insulation Resistance	-	100MW/500VDC	100MW/500VDC	100MW/500VDC	100MW/500VDC	100MW/500VDC
Weight	g	270	270	270	270	270
Rated Voltage	v	18	24	36	48	24
Rated Power	W	68	69	74	85	85
Rated Torque	mN·m	70	70	70	70	100
Rated Speed	RPM	7340	9345	10000	11700	8100
Rated Current	A	4.97	3.78	2.59	2.21	4.8
No-load Speed	RPM	10000	11000	11500	13000	10300
No-load Current	A	0.37	0.37	0.22	0.2	0.36
Motor Efficiency	%	76	76	79.5	80	84.4
Noise (Ambient Noise 20 dB, Test Distance 1 m)	dB	<50	<50	<50	<50	<50
Thermal Resistance, Housing-to-Ambient	K/W	7.4	7.46	7.53	7.23	7.48
Motor Thermal Time Constant	S	1350	1350	1700	1080	1330
Ambient Temperature	℃	21.1	23.1	20.1	20.4	19.5
Maximum Winding Temperature	℃	90	90	90	90	69.3
Torque Constant	mN·m/A	14.08	18.50	27.07	31.62	20.83
Back EMF Constant – Peak	V/Krpm	2.09	2.74	4.01	4.68	3.08
Back EMF Constant – RMS	V/Krpm	1.47	1.94	2.83	3.31	2.18
Peak Torque	mN·m	422.47	653.09	672.16	722.82	1219.51
Peak Current	A	30	35	25	23	59
Rotor Inertia	g·cm²	59	39	39	39	39
Mechanical Time Constant	ms	11.8	7.75	7.72	8.19	3.68
End Cover	-	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
Bearing	-	Deep Groove Ball Bearing	Deep Groove Ball Bearing	Deep Groove Ball Bearing	Deep Groove Ball Bearing	Deep Groove Ball Bearing
Magnet	-	Sintered NdFeB	Sintered NdFeB	Sintered NdFeB	Sintered NdFeB	Sintered NdFeB
Shaft	-	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel

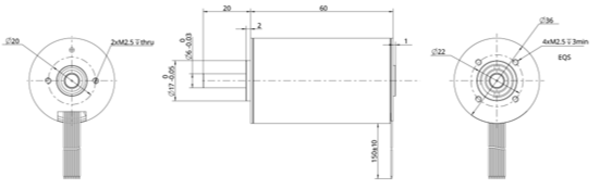

Overall Dimensions

Product Drawing

After Service

To provide solid support for all after-sales services, ensuring service quality and efficiency:

1. National service outlets:Establishing service outlets and testing centers in major industrial cities in China to achieve regional service coverage and shorten on-site service response time;

2. Original factory engineering team:All service engineers have undergone professional training and assessment, possess the ability to debug, repair, and calibrate sensors/joint modules throughout the entire process, and are certified to work;

3. Standardized service process:Establish a standardized process from service acceptance, fault diagnosis, solution, service execution, and after-sales follow-up to ensure that every service is recorded, tracked, and guaranteed;

4. Service quality follow-up:After all services are completed, Follow up with customers within 72 hour, collect customer feedback, and continuously optimize service processes and quality.

Promise to quickly solve problems within 12 hours, 7x24Timely response within hours,36on-site maintenance within hours.
