Name: 42 Series
Rating: 4.5 (100 reviews)

Technical Data

Motor Model		42ZWWC80
Number of Pole Pairs	-	1	1	1	1	2
Line Resistance	W	0.4	0.45	0.6	0.95	0.22
Line Inductance	mH	0.085	0.14	0.14	0.23	0.035
Winding Connection	-	Star Connection	Star Connection	Star Connection	Star Connection	Star Connection
Insulation Class	-	B	B	B	B	B
Duty Cycle	-	S2	S2	S2	S2	S1
Feedback Method	-	Hall Sensor	Hall Sensor	Hall Sensor	Hall Sensor	Hall Sensor
Commutation Angle	-	120°	120°	120°	120°	120°
Insulation Strength (Withstand Voltage)	-	500VAC/1KHz/1mA/1s	500VAC/1KHz/1mA/1s	500VAC/1KHz/1mA/1s	500VAC/1KHz/1mA/1s	500VAC/1KHz/1mA/1s
Insulation Resistance	-	100MW/500VDC	100MW/500VDC	100MW/500VDC	100MW/500VDC	100MW/500VDC
Weight	g	500	500	500	500	500
Rated Voltage	v	18	24	36	48	24
Rated Power	W	66	80	100	160	102
Rated Torque	mN·m	90	90	90	120	180
Rated Speed	RPM	6678	8346	11619	12200	5400
Rated Current	A	4.89	4.17	3.47	4.17	5.7
No-load Speed	RPM	9000	11000	13000	13800	6800
No-load Current	A	0.6	0.69	0.6	0.58	0.42
Motor Efficiency	%	75	80	80	80	87.9
Noise (Ambient Noise 20 dB, Test Distance 1 m)	dB	<50	<50	<50	<50	<50
Thermal Resistance, Housing-to-Ambient	K/W	4.11	4.79	5.44	5.32	4.7
Motor Thermal Time Constant	S	1240	1620	2040	2040	1340
Ambient Temperature	℃	23.1	23.5	23	23	22.6
Maximum Winding Temperature	℃	51.5	63.7	80	80	72.1
Torque Constant	mN·m/A	18.41	21.6	25.92	28.8	31.68
Back EMF Constant – Peak	V/Krpm	2.73	3.20	3.84	4.26	4.68
Back EMF Constant – RMS	V/Krpm	1.93	2.26	2.71	3.02	3.31
Peak Torque	mN·m	828.41	1152	1555.2	1455.16	3444.98
Peak Current	A	45	53	60	51	109
Rotor Inertia	g·cm²	96.3	96.3	96.3	96.3	96.3
Mechanical Time Constant	ms	11.37	9.29	8.6	11.03	2.12
End Cover	-	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel	Stainless Steel
Bearing	-	Deep Groove Ball Bearing	Deep Groove Ball Bearing	Deep Groove Ball Bearing	Deep Groove Ball Bearing	Deep Groove Ball Bearing
Magnet	-	Sintered NdFeB	Sintered NdFeB	Sintered NdFeB	Sintered NdFeB	Sintered NdFeB
Shaft	-	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel	Carbon Steel

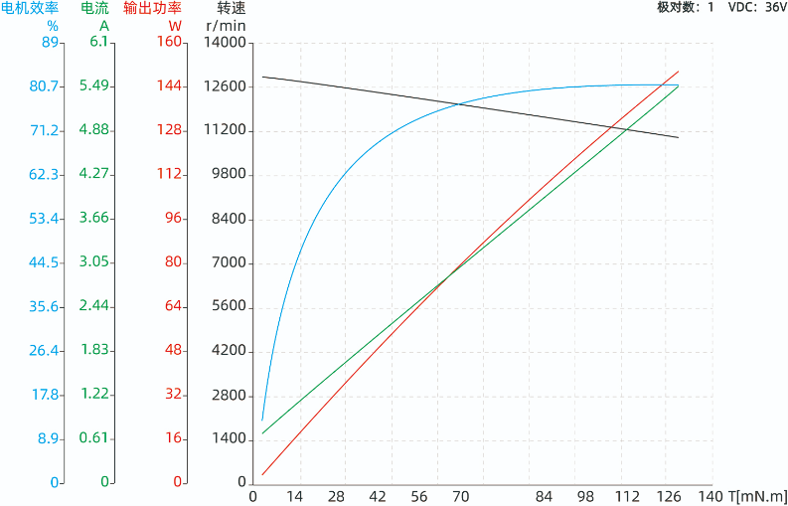

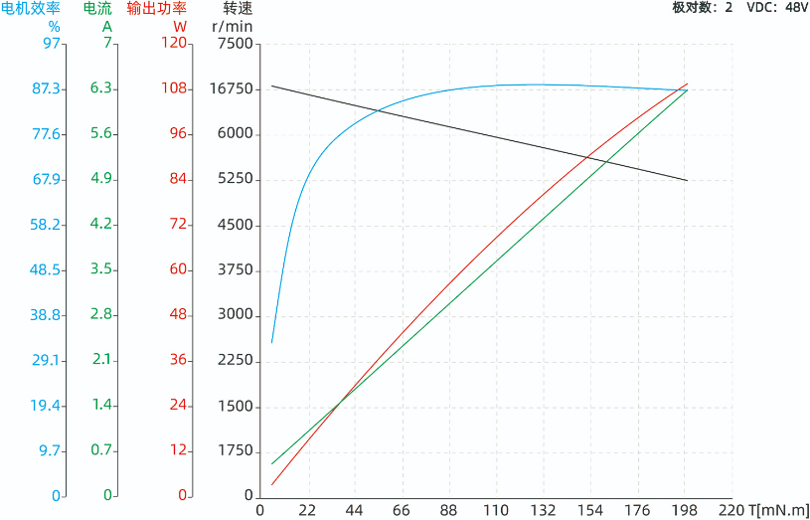

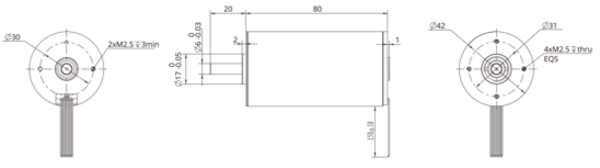

Overall Dimensions

Product Drawing
